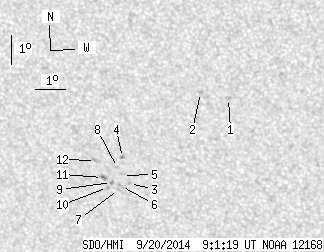

SDO HMI 2014-09-20 09:01:19 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.71 | 21.20 | 0.42 | 12.35 | -21.12 | 310.39 | -14.57 | 153.51 | 0.5265 | -475.0 | -353.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-20 09:01:19 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.57 | 0.00 | 1.45 | -18.88 | 313.81 | -11.14 | 157.24 | 0.4746 | 726.0 | 499.4 | |
| 0.00 | 1.33 | 0.00 | 0.75 | -18.70 | 312.92 | -12.04 | 155.45 | 0.4776 | 138.0 | 149.5 | |
| 0.00 | 0.80 | 0.00 | 0.47 | -21.86 | 310.29 | -14.67 | 153.94 | 0.5370 | -852.0 | -675.7 | |
| 0.00 | 1.51 | 0.00 | 0.88 | -20.98 | 310.15 | -14.81 | 152.92 | 0.5264 | -516.0 | -403.0 | |
| 0.00 | 0.89 | 0.00 | 0.52 | -21.60 | 310.08 | -14.87 | 153.38 | 0.5348 | -838.0 | -746.4 | |
| 0.00 | 3.10 | 0.00 | 1.82 | -21.98 | 310.01 | -14.95 | 153.61 | 0.5403 | -530.0 | -486.1 | |
| 0.00 | 1.06 | 0.00 | 0.63 | -22.08 | 309.90 | -15.06 | 153.53 | 0.5424 | -553.0 | -530.8 | |
| 0.00 | 0.98 | 0.00 | 0.57 | -21.33 | 309.94 | -15.01 | 152.93 | 0.5323 | -364.0 | -380.7 | |
| 0.00 | 1.60 | 0.00 | 0.94 | -21.85 | 309.69 | -15.27 | 153.01 | 0.5408 | -833.0 | -730.6 | |
| 0.00 | 1.15 | 0.00 | 0.68 | -22.03 | 309.53 | -15.43 | 152.94 | 0.5441 | -603.0 | -563.3 | |
| 0.71 | 2.93 | 0.42 | 1.72 | -21.69 | 309.40 | -15.56 | 152.43 | 0.5406 | -818.9 | -658.2 | |
| 0.00 | 3.28 | 0.00 | 1.92 | -21.11 | 309.23 | -15.73 | 151.64 | 0.5344 | -512.0 | -326.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
