SDO HMI 2014-09-20 10:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 7.09 | 28.11 | 14.36 | 59.43 | -14.77 | 250.56 | -73.86 | 107.15 | 0.9723 | 175.6 | -8.4 | |
|
previous
or next observation for the same group /

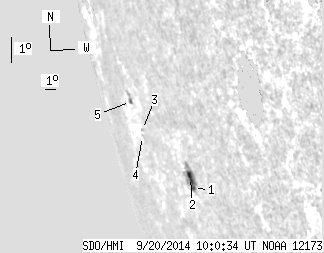

back to the solar disc SDO HMI 2014-09-20 10:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.33 | 20.93 | 2.52 | 39.65 | -15.56 | 252.36 | -72.05 | 108.29 | 0.9664 | 301.4 | 143.4 | |
| 4.70 | -1.00 | 8.87 | -1.00 | -15.21 | 252.36 | -72.06 | 107.93 | 0.9661 | 380.4 | 999999 | |
| 0.00 | 0.98 | 0.00 | 2.57 | -14.27 | 247.60 | -76.82 | 106.07 | 0.9829 | -152.0 | -214.8 | |
| 0.00 | 1.06 | 0.00 | 2.85 | -14.52 | 247.30 | -77.12 | 106.28 | 0.9839 | -276.0 | -243.4 | |
| 1.06 | 5.14 | 2.97 | 14.36 | -13.49 | 246.75 | -77.67 | 105.14 | 0.9850 | -280.6 | -279.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
