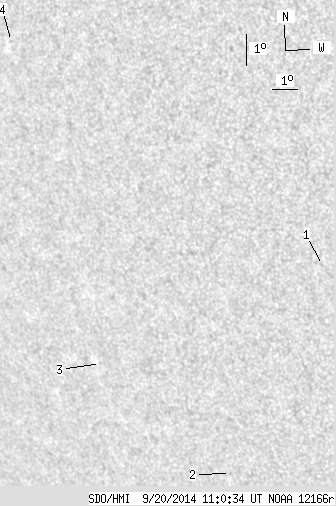

SDO HMI 2014-09-20 11:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.23 | 0.00 | 1.52 | -14.91 | 286.17 | -37.69 | 120.66 | 0.6898 | 466.5 | 433.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-20 11:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.80 | 0.00 | 0.50 | -12.20 | 290.93 | -32.94 | 120.34 | 0.6180 | 379.0 | 373.9 | |
| 0.00 | 0.89 | 0.00 | 0.63 | -19.34 | 285.92 | -37.94 | 125.94 | 0.7189 | 516.0 | 462.0 | |
| 0.00 | 0.27 | 0.00 | 0.20 | -16.10 | 281.41 | -42.46 | 119.21 | 0.7454 | 481.0 | 421.0 | |
| 0.00 | 0.27 | 0.00 | 0.19 | -6.10 | 279.52 | -44.35 | 105.53 | 0.7238 | 490.0 | 508.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
