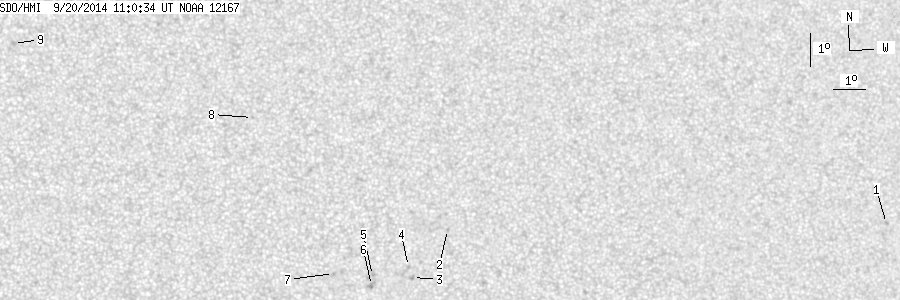

SDO HMI 2014-09-20 11:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 15.88 | 0.00 | 7.97 | 9.20 | 328.39 | 4.52 | 248.24 | 0.1269 | 692.2 | 558.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-20 11:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.68 | 0.00 | 0.89 | 8.84 | 344.19 | 20.32 | 276.32 | 0.3468 | -801.0 | -652.9 | |
| 0.00 | 1.24 | 0.00 | 0.62 | 9.06 | 330.41 | 6.54 | 287.35 | 0.1184 | 864.0 | 705.8 | |
| 0.00 | 2.31 | 0.00 | 1.15 | 7.63 | 329.32 | 5.45 | 276.04 | 0.0950 | 831.0 | 671.6 | |
| 0.00 | 1.42 | 0.00 | 0.71 | 7.96 | 329.20 | 5.33 | 279.71 | 0.0938 | 850.0 | 527.0 | |
| 0.00 | 0.62 | 0.00 | 0.31 | 7.71 | 328.10 | 4.23 | 278.58 | 0.0742 | 925.0 | 818.9 | |
| 0.00 | 3.81 | 0.00 | 1.89 | 7.41 | 328.06 | 4.19 | 274.55 | 0.0731 | 1046.0 | 843.3 | |
| 0.00 | 1.51 | 0.00 | 0.75 | 7.78 | 326.91 | 3.04 | 282.96 | 0.0542 | 821.0 | 704.2 | |
| 0.00 | 0.98 | 0.00 | 0.49 | 12.49 | 324.46 | 0.59 | 353.86 | 0.0951 | 782.0 | 578.9 | |
| 0.00 | 2.31 | 0.00 | 1.16 | 14.69 | 317.02 | -6.85 | 40.91 | 0.1770 | 912.0 | 681.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
