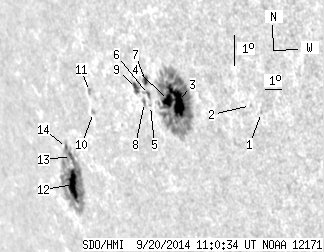

SDO HMI 2014-09-20 11:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 62.04 | 299.03 | 65.46 | 316.55 | -9.65 | 263.94 | -59.93 | 104.91 | 0.8828 | 188.7 | 60.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-20 11:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.15 | 0.00 | 0.98 | -8.22 | 271.69 | -52.18 | 105.50 | 0.8135 | 209.0 | 269.7 | |
| 0.00 | 0.98 | 0.00 | 0.84 | -8.06 | 271.17 | -52.70 | 105.14 | 0.8182 | 292.0 | 323.0 | |
| 24.73 | 168.71 | 23.47 | 160.78 | -8.34 | 267.24 | -56.62 | 104.33 | 0.8549 | 797.7 | 218.5 | |
| 9.13 | -3.00 | 8.79 | -3.00 | -8.36 | 266.73 | -57.14 | 104.22 | 0.8593 | 520.6 | 999999 | |
| 0.00 | 1.06 | 0.00 | 1.06 | -8.63 | 265.63 | -58.23 | 104.23 | 0.8692 | 67.0 | 102.5 | |
| 1.06 | 4.17 | 1.06 | 4.15 | -8.29 | 265.60 | -58.27 | 103.84 | 0.8688 | 292.5 | 268.7 | |
| 3.01 | 4.96 | 2.99 | 4.93 | -7.87 | 265.53 | -58.34 | 103.34 | 0.8686 | 406.5 | 324.9 | |
| 0.00 | 3.19 | 0.00 | 3.21 | -8.57 | 265.30 | -58.57 | 104.08 | 0.8719 | 142.0 | 123.4 | |
| 3.72 | 8.51 | 3.77 | 8.62 | -8.18 | 264.92 | -58.95 | 103.54 | 0.8742 | 219.7 | 141.3 | |
| 0.00 | 1.86 | 0.00 | 2.09 | -9.25 | 261.95 | -61.92 | 103.99 | 0.8993 | -447.0 | -422.2 | |
| 0.00 | 2.31 | 0.00 | 2.58 | -8.61 | 261.88 | -61.99 | 103.27 | 0.8987 | -347.0 | -331.8 | |
| 16.67 | 102.13 | 20.81 | 127.31 | -11.76 | 259.65 | -64.22 | 106.12 | 0.9194 | -506.2 | -140.2 | |
| 2.66 | -12.00 | 3.26 | -12.00 | -10.86 | 259.88 | -63.98 | 105.22 | 0.9164 | -462.9 | 999999 | |
| 1.06 | -12.00 | 1.31 | -12.00 | -10.60 | 259.63 | -64.24 | 104.89 | 0.9177 | -27.5 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
