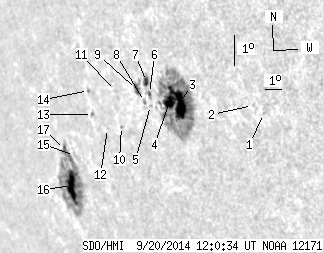

SDO HMI 2014-09-20 12:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 65.94 | 311.83 | 67.58 | 325.81 | -9.71 | 263.79 | -59.53 | 105.09 | 0.8798 | 212.4 | 43.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-20 12:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.89 | 0.00 | 0.74 | -8.23 | 271.69 | -51.63 | 105.69 | 0.8081 | 397.0 | 367.0 | |
| 0.00 | 0.53 | 0.00 | 0.45 | -8.03 | 271.19 | -52.13 | 105.29 | 0.8126 | 405.0 | 326.3 | |
| 27.92 | 171.87 | 26.08 | 161.25 | -8.37 | 267.25 | -56.07 | 104.53 | 0.8500 | 782.7 | 206.3 | |
| 11.52 | -3.00 | 10.91 | -3.00 | -8.36 | 266.76 | -56.56 | 104.38 | 0.8544 | 501.9 | 999999 | |
| 0.00 | 1.06 | 0.00 | 1.04 | -8.61 | 265.63 | -57.69 | 104.35 | 0.8646 | 229.0 | 156.9 | |
| 0.89 | 3.63 | 0.87 | 3.55 | -8.23 | 265.66 | -57.66 | 103.93 | 0.8636 | 227.5 | 307.5 | |
| 3.01 | 5.85 | 2.94 | 5.71 | -7.87 | 265.57 | -57.75 | 103.50 | 0.8636 | 415.6 | 336.5 | |
| 0.00 | 2.22 | 0.00 | 2.19 | -8.52 | 265.30 | -58.02 | 104.16 | 0.8672 | 212.0 | 209.6 | |
| 3.46 | 8.42 | 3.44 | 8.37 | -8.19 | 264.92 | -58.40 | 103.69 | 0.8697 | 255.3 | 181.1 | |
| 0.00 | 1.06 | 0.00 | 1.11 | -9.47 | 263.68 | -59.64 | 104.80 | 0.8822 | 92.0 | 90.9 | |
| 0.00 | 1.24 | 0.00 | 1.29 | -8.36 | 263.62 | -59.70 | 103.55 | 0.8806 | -283.0 | -248.1 | |
| 0.00 | 0.27 | 0.00 | 0.29 | -9.63 | 262.77 | -60.55 | 104.74 | 0.8896 | -248.0 | -219.3 | |
| 0.35 | 1.42 | 0.39 | 1.57 | -9.29 | 261.92 | -61.40 | 104.15 | 0.8954 | -375.8 | -401.5 | |
| 0.00 | 1.24 | 0.00 | 1.37 | -8.55 | 261.88 | -61.44 | 103.33 | 0.8945 | -313.0 | -325.1 | |
| 0.00 | 3.46 | 0.00 | 4.09 | -10.76 | 260.22 | -63.10 | 105.33 | 0.9102 | -584.0 | -491.6 | |
| 16.04 | 108.67 | 19.62 | 132.79 | -11.77 | 259.61 | -63.71 | 106.25 | 0.9160 | -552.5 | -135.1 | |
| 2.75 | -16.00 | 3.33 | -16.00 | -10.64 | 259.58 | -63.74 | 105.05 | 0.9144 | -75.4 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
