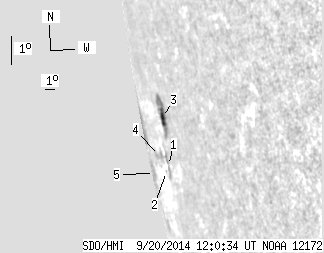

SDO HMI 2014-09-20 12:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 7.18 | 45.03 | 22.58 | 219.65 | -10.99 | 240.98 | -82.34 | 101.92 | 0.9938 | 172.5 | -139.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-20 12:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 7.36 | 0.00 | 25.77 | -11.14 | 243.12 | -80.20 | 102.39 | 0.9905 | 284.0 | 238.5 | |
| 0.00 | 0.27 | 0.00 | 1.02 | -11.42 | 242.39 | -80.93 | 102.55 | 0.9922 | 253.0 | 261.3 | |
| 7.18 | 22.69 | 22.58 | 71.98 | -9.58 | 243.71 | -79.61 | 100.91 | 0.9885 | 210.6 | 144.9 | |
| 0.00 | 5.85 | 0.00 | 26.27 | -11.04 | 241.42 | -81.90 | 102.03 | 0.9940 | -255.0 | -155.7 | |
| 0.00 | 8.86 | 0.00 | 94.61 | -12.01 | 238.18 | -85.14 | 102.53 | 0.9986 | -454.0 | -390.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
