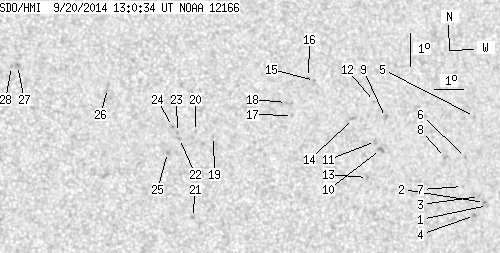

SDO HMI 2014-09-20 13:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 41.65 | 0.00 | 23.73 | 13.46 | 351.66 | 28.89 | 285.72 | 0.4886 | -195.5 | -176.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-20 13:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.51 | 0.00 | 0.91 | 10.94 | 357.96 | 35.19 | 278.96 | 0.5750 | -703.0 | -615.6 | |
| 0.00 | 1.51 | 0.00 | 0.91 | 11.03 | 357.86 | 35.09 | 279.14 | 0.5737 | -879.0 | -743.4 | |
| 0.00 | 0.97 | 0.00 | 0.59 | 11.23 | 357.70 | 34.93 | 279.50 | 0.5716 | -722.0 | -606.0 | |
| 0.00 | 1.24 | 0.00 | 0.75 | 10.67 | 357.44 | 34.67 | 278.54 | 0.5674 | -843.0 | -760.3 | |
| 0.00 | 1.15 | 0.00 | 0.70 | 13.65 | 357.89 | 35.12 | 283.67 | 0.5775 | -605.0 | -454.9 | |
| 0.00 | 0.97 | 0.00 | 0.59 | 12.44 | 357.35 | 34.58 | 281.67 | 0.5681 | -700.0 | -605.4 | |
| 0.00 | 1.15 | 0.00 | 0.69 | 11.57 | 357.11 | 34.34 | 280.18 | 0.5637 | -555.0 | -465.1 | |
| 0.00 | 1.95 | 0.00 | 1.16 | 12.49 | 356.61 | 33.84 | 281.89 | 0.5578 | -836.0 | -637.5 | |
| 0.00 | 2.57 | 0.00 | 1.50 | 13.84 | 354.61 | 31.84 | 284.82 | 0.5319 | -711.0 | -625.8 | |
| 0.00 | 2.57 | 0.00 | 1.49 | 12.89 | 354.28 | 31.51 | 283.11 | 0.5252 | -887.0 | -813.0 | |
| 0.00 | 1.86 | 0.00 | 1.08 | 13.14 | 354.14 | 31.37 | 283.63 | 0.5237 | -731.0 | -648.1 | |
| 0.00 | 1.24 | 0.00 | 0.72 | 14.35 | 354.28 | 31.51 | 285.87 | 0.5285 | -730.0 | -557.9 | |
| 0.00 | 0.62 | 0.00 | 0.36 | 12.07 | 353.70 | 30.93 | 281.69 | 0.5153 | -788.0 | -623.6 | |
| 0.00 | 2.22 | 0.00 | 1.28 | 13.88 | 353.45 | 30.68 | 285.25 | 0.5155 | -735.0 | -664.4 | |
| 0.00 | 0.89 | 0.00 | 0.51 | 15.12 | 352.23 | 29.46 | 288.08 | 0.5015 | -626.0 | -548.3 | |
| 0.00 | 1.33 | 0.00 | 0.76 | 15.22 | 352.03 | 29.26 | 288.36 | 0.4990 | -665.0 | -556.1 | |
| 0.00 | 1.24 | 0.00 | 0.70 | 14.10 | 351.30 | 28.53 | 286.43 | 0.4849 | -766.0 | -565.1 | |
| 0.00 | 0.71 | 0.00 | 0.40 | 14.51 | 351.15 | 28.38 | 287.32 | 0.4839 | -823.0 | -729.0 | |
| 0.00 | 0.80 | 0.00 | 0.44 | 13.62 | 348.48 | 25.71 | 286.59 | 0.4418 | 710.0 | 526.3 | |
| 0.00 | 0.71 | 0.00 | 0.39 | 13.81 | 347.89 | 25.12 | 287.28 | 0.4335 | 486.0 | 416.5 | |
| 0.00 | 1.68 | 0.00 | 0.92 | 11.22 | 347.51 | 24.74 | 281.44 | 0.4206 | 831.0 | 616.7 | |
| 0.00 | 1.33 | 0.00 | 0.73 | 13.62 | 347.32 | 24.55 | 287.15 | 0.4243 | 912.0 | 641.1 | |
| 0.00 | 0.80 | 0.00 | 0.44 | 13.81 | 347.27 | 24.50 | 287.60 | 0.4243 | 803.0 | 612.6 | |
| 0.00 | 0.97 | 0.00 | 0.53 | 14.00 | 347.12 | 24.35 | 288.12 | 0.4228 | 896.0 | 760.8 | |
| 0.00 | 1.77 | 0.00 | 0.96 | 13.22 | 346.87 | 24.10 | 286.43 | 0.4161 | 859.0 | 677.0 | |
| 0.00 | 4.17 | 0.00 | 2.25 | 15.25 | 345.06 | 22.29 | 292.41 | 0.3975 | 601.0 | 570.1 | |
| 0.00 | 2.57 | 0.00 | 1.36 | 16.08 | 342.14 | 19.37 | 297.09 | 0.3595 | 870.0 | 716.3 | |
| 0.00 | 1.15 | 0.00 | 0.61 | 16.06 | 341.94 | 19.17 | 297.25 | 0.3564 | 863.0 | 700.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
