SDO HMI 2014-09-20 14:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 13.65 | 0.00 | 6.99 | 8.57 | 334.74 | 12.52 | 276.90 | 0.2162 | 442.9 | 426.5 | |
|
previous
or next observation for the same group /

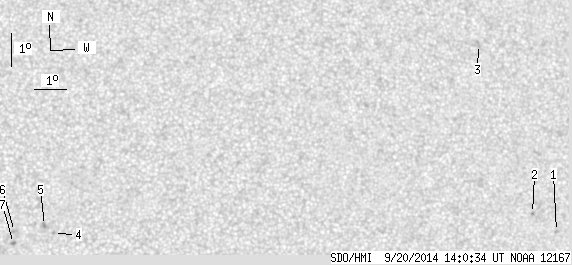

back to the solar disc SDO HMI 2014-09-20 14:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.60 | 0.00 | 0.86 | 7.14 | 345.16 | 22.94 | 271.56 | 0.3885 | -779.0 | -590.7 | |
| 0.00 | 1.15 | 0.00 | 0.62 | 7.72 | 344.40 | 22.18 | 273.06 | 0.3763 | -827.0 | -723.6 | |
| 0.00 | 2.48 | 0.00 | 1.32 | 12.89 | 343.00 | 20.78 | 287.46 | 0.3642 | 766.0 | 583.9 | |
| 0.00 | 1.33 | 0.00 | 0.66 | 7.60 | 329.32 | 7.10 | 274.57 | 0.1234 | 919.0 | 658.9 | |
| 0.00 | 2.39 | 0.00 | 1.19 | 7.84 | 329.04 | 6.82 | 276.78 | 0.1191 | 983.0 | 834.3 | |
| 0.00 | 2.75 | 0.00 | 1.37 | 7.68 | 328.13 | 5.91 | 276.09 | 0.1030 | 950.0 | 645.3 | |
| 0.00 | 1.95 | 0.00 | 0.97 | 7.32 | 328.09 | 5.87 | 272.58 | 0.1020 | 1088.0 | 871.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
