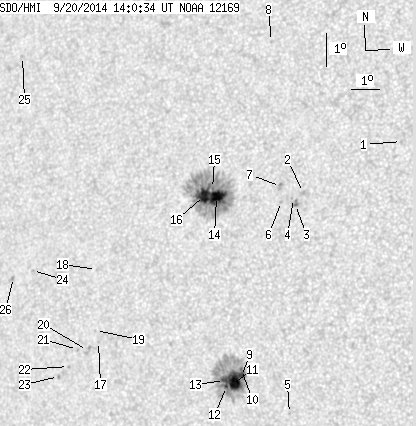

SDO HMI 2014-09-20 14:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 47.95 | 306.15 | 27.90 | 178.72 | 8.56 | 290.22 | -32.00 | 85.24 | 0.5293 | -577.2 | -295.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-20 14:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.89 | 0.00 | 0.49 | 12.76 | 296.36 | -25.86 | 75.40 | 0.4414 | -763.0 | -630.0 | |
| 0.00 | 1.42 | 0.00 | 0.80 | 11.04 | 293.14 | -29.08 | 80.00 | 0.4863 | -831.0 | -626.2 | |
| 0.35 | 3.81 | 0.20 | 2.16 | 10.66 | 292.90 | -29.32 | 80.82 | 0.4894 | -858.2 | -760.4 | |
| 0.00 | 0.71 | 0.00 | 0.40 | 10.84 | 292.81 | -29.41 | 80.47 | 0.4910 | -328.0 | -484.8 | |
| 0.00 | 0.89 | 0.00 | 0.50 | 4.37 | 293.15 | -29.07 | 93.78 | 0.4875 | 424.0 | 353.1 | |
| 0.00 | 1.15 | 0.00 | 0.66 | 10.72 | 292.40 | -29.82 | 80.77 | 0.4970 | -597.0 | -519.0 | |
| 0.00 | 2.75 | 0.00 | 1.57 | 11.17 | 292.32 | -29.90 | 79.88 | 0.4988 | -422.0 | -451.8 | |
| 0.00 | 1.06 | 0.00 | 0.62 | 15.53 | 291.39 | -30.83 | 71.68 | 0.5222 | -690.0 | -472.0 | |
| 1.60 | 113.42 | 0.92 | 65.59 | 5.38 | 291.43 | -30.79 | 91.41 | 0.5119 | -1077.8 | -316.0 | |
| 0.27 | -9.00 | 0.15 | -9.00 | 5.59 | 291.41 | -30.81 | 91.00 | 0.5118 | -863.3 | 999999 | |
| 12.05 | -9.00 | 6.96 | -9.00 | 5.18 | 291.19 | -31.03 | 91.75 | 0.5157 | -1016.4 | 999999 | |
| 1.24 | -9.00 | 0.72 | -9.00 | 5.04 | 290.91 | -31.31 | 91.97 | 0.5200 | -735.6 | 999999 | |
| 3.81 | -9.00 | 2.21 | -9.00 | 5.22 | 290.83 | -31.39 | 91.62 | 0.5209 | -672.0 | 999999 | |
| 16.13 | 166.32 | 9.41 | 97.36 | 10.73 | 290.08 | -32.14 | 81.08 | 0.5312 | -1108.7 | -340.4 | |
| 0.27 | -14.00 | 0.16 | -14.00 | 10.96 | 289.90 | -32.32 | 80.67 | 0.5340 | -718.0 | 999999 | |
| 12.23 | -14.00 | 7.17 | -14.00 | 10.73 | 289.64 | -32.58 | 81.13 | 0.5376 | -849.3 | 999999 | |
| 0.00 | 1.06 | 0.00 | 0.65 | 6.09 | 286.19 | -36.04 | 89.42 | 0.5872 | 705.0 | 557.1 | |
| 0.00 | 0.53 | 0.00 | 0.33 | 8.24 | 285.91 | -36.31 | 85.73 | 0.5898 | 497.0 | 466.0 | |
| 0.00 | 0.89 | 0.00 | 0.54 | 6.41 | 286.05 | -36.17 | 88.86 | 0.5889 | 546.0 | 444.5 | |
| 0.00 | 3.63 | 0.00 | 2.23 | 5.79 | 285.79 | -36.43 | 89.88 | 0.5930 | 531.0 | 625.5 | |
| 0.00 | 1.06 | 0.00 | 0.66 | 5.79 | 285.42 | -36.80 | 89.83 | 0.5983 | 743.0 | 664.8 | |
| 0.00 | 1.06 | 0.00 | 0.66 | 5.25 | 285.11 | -37.11 | 90.69 | 0.6031 | 627.0 | 505.2 | |
| 0.00 | 1.51 | 0.00 | 0.94 | 4.92 | 284.75 | -37.47 | 91.18 | 0.6084 | 654.0 | 523.9 | |
| 0.00 | 1.15 | 0.00 | 0.73 | 8.03 | 283.48 | -38.74 | 86.00 | 0.6235 | 687.0 | 579.4 | |
| 0.00 | 1.42 | 0.00 | 0.92 | 14.42 | 282.04 | -40.18 | 76.00 | 0.6463 | -615.0 | -502.7 | |
| 0.00 | 1.42 | 0.00 | 0.91 | 7.76 | 282.76 | -39.46 | 86.40 | 0.6332 | 640.0 | 521.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
