SDO HMI 2014-09-20 15:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 13.74 | 0.00 | 7.06 | 8.31 | 334.80 | 13.13 | 277.32 | 0.2259 | 227.1 | 236.6 | |
|
previous
or next observation for the same group /

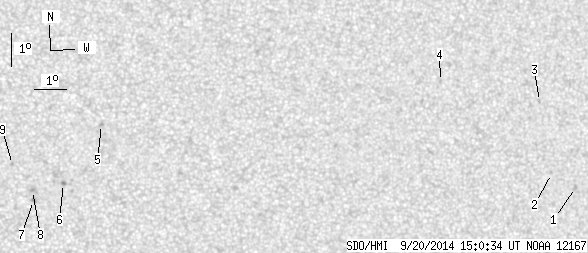

back to the solar disc SDO HMI 2014-09-20 15:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.13 | 0.00 | 1.15 | 7.17 | 345.20 | 23.53 | 271.68 | 0.3980 | -803.0 | -621.2 | |
| 0.00 | 0.80 | 0.00 | 0.43 | 7.63 | 344.44 | 22.77 | 272.83 | 0.3857 | -583.0 | -492.7 | |
| 0.00 | 1.24 | 0.00 | 0.66 | 9.82 | 344.18 | 22.51 | 278.56 | 0.3832 | -625.0 | -439.8 | |
| 0.00 | 1.06 | 0.00 | 0.56 | 10.56 | 340.99 | 19.32 | 281.70 | 0.3336 | -733.0 | -579.8 | |
| 0.00 | 1.95 | 0.00 | 0.98 | 9.59 | 330.25 | 8.58 | 287.00 | 0.1546 | 863.0 | 648.7 | |
| 0.00 | 2.04 | 0.00 | 1.02 | 7.84 | 329.04 | 7.37 | 276.29 | 0.1285 | 1055.0 | 814.7 | |
| 0.00 | 2.04 | 0.00 | 1.02 | 7.34 | 328.12 | 6.45 | 272.63 | 0.1120 | 1066.0 | 765.3 | |
| 0.00 | 1.51 | 0.00 | 0.75 | 7.64 | 328.09 | 6.42 | 275.34 | 0.1119 | 927.0 | 803.6 | |
| 0.00 | 0.97 | 0.00 | 0.49 | 8.43 | 327.49 | 5.82 | 283.46 | 0.1037 | 877.0 | 747.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
