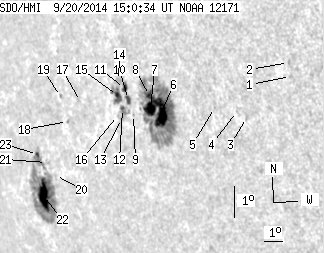

SDO HMI 2014-09-20 15:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 73.88 | 328.06 | 71.47 | 324.56 | -9.74 | 263.96 | -57.71 | 105.62 | 0.8648 | 257.1 | 48.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-20 15:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.59 | 0.00 | 1.22 | -6.70 | 274.02 | -47.65 | 105.13 | 0.7626 | 401.0 | 380.5 | |
| 0.00 | 0.97 | 0.00 | 0.74 | -6.28 | 273.99 | -47.68 | 104.57 | 0.7617 | 492.0 | 539.1 | |
| 0.00 | 2.30 | 0.00 | 1.86 | -8.19 | 271.76 | -49.91 | 106.20 | 0.7908 | 474.0 | 404.9 | |
| 0.00 | 0.62 | 0.00 | 0.50 | -8.05 | 271.31 | -50.36 | 105.88 | 0.7950 | 296.0 | 337.0 | |
| 0.00 | 0.62 | 0.00 | 0.52 | -8.03 | 270.24 | -51.43 | 105.51 | 0.8056 | 178.0 | 248.3 | |
| 30.03 | 168.34 | 26.77 | 150.58 | -8.43 | 267.48 | -54.19 | 105.13 | 0.8331 | 832.7 | 234.3 | |
| 12.23 | -6.00 | 11.05 | -6.00 | -8.39 | 266.91 | -54.76 | 104.92 | 0.8383 | 542.6 | 999999 | |
| 3.63 | -6.00 | 3.27 | -6.00 | -7.99 | 266.94 | -54.73 | 104.46 | 0.8371 | 642.5 | 999999 | |
| 0.00 | 0.71 | 0.00 | 0.66 | -8.68 | 265.93 | -55.74 | 104.97 | 0.8478 | 175.0 | 189.0 | |
| 2.48 | 4.61 | 2.31 | 4.29 | -8.23 | 265.76 | -55.91 | 104.41 | 0.8483 | 511.8 | 362.8 | |
| 2.75 | 5.05 | 2.56 | 4.70 | -7.91 | 265.61 | -56.06 | 103.99 | 0.8489 | 460.6 | 361.6 | |
| 0.97 | 5.14 | 0.92 | 4.83 | -8.55 | 265.36 | -56.31 | 104.66 | 0.8526 | 337.6 | 69.7 | |
| 0.00 | 1.59 | 0.00 | 1.51 | -8.88 | 265.23 | -56.44 | 105.00 | 0.8544 | -291.0 | -342.7 | |
| 0.00 | 3.37 | 0.00 | 3.16 | -7.69 | 265.33 | -56.34 | 103.67 | 0.8510 | 97.0 | 120.7 | |
| 2.66 | 13.73 | 2.51 | 12.98 | -8.17 | 265.17 | -56.50 | 104.17 | 0.8534 | 352.1 | 192.3 | |
| 0.00 | 0.80 | 0.00 | 0.76 | -8.81 | 265.02 | -56.65 | 104.86 | 0.8561 | -341.0 | -344.9 | |
| 0.00 | 0.62 | 0.00 | 0.63 | -8.59 | 262.95 | -58.72 | 104.06 | 0.8731 | -161.0 | -147.3 | |
| 0.00 | 1.24 | 0.00 | 1.29 | -9.32 | 261.97 | -59.70 | 104.62 | 0.8824 | -309.0 | -306.1 | |
| 0.00 | 0.97 | 0.00 | 1.02 | -8.57 | 261.75 | -59.92 | 103.73 | 0.8827 | -310.0 | -287.0 | |
| 0.00 | 2.30 | 0.00 | 2.55 | -11.15 | 260.63 | -61.04 | 106.27 | 0.8961 | -92.0 | -136.8 | |
| 0.00 | 2.57 | 0.00 | 2.88 | -10.80 | 260.18 | -61.49 | 105.77 | 0.8988 | -638.0 | -518.9 | |
| 17.54 | 110.92 | 20.26 | 127.88 | -11.90 | 259.56 | -62.11 | 106.80 | 0.9052 | -585.3 | -152.6 | |
| 1.59 | -22.00 | 1.82 | -22.00 | -10.60 | 259.66 | -62.01 | 105.43 | 0.9022 | -45.8 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
