SDO HMI 2014-09-20 15:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 8.15 | 51.65 | 21.85 | 156.90 | -10.60 | 242.72 | -78.95 | 102.05 | 0.9869 | 252.0 | 84.8 | |
|
previous
or next observation for the same group /

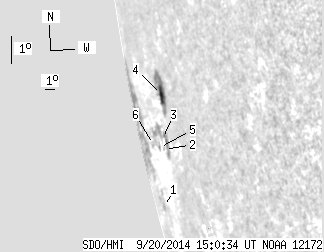

back to the solar disc SDO HMI 2014-09-20 15:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.66 | 0.00 | 13.30 | -13.59 | 239.40 | -82.27 | 104.51 | 0.9954 | 45.0 | 13.1 | |
| 0.00 | 1.24 | 0.00 | 3.88 | -11.42 | 242.45 | -79.21 | 102.82 | 0.9882 | 304.0 | 309.3 | |
| 0.00 | 17.37 | 0.00 | 54.33 | -11.08 | 242.49 | -79.18 | 102.48 | 0.9880 | 339.0 | 112.3 | |
| 8.15 | 27.55 | 21.85 | 74.66 | -9.55 | 243.75 | -77.92 | 101.16 | 0.9837 | 297.9 | 119.9 | |
| 0.00 | 1.59 | 0.00 | 5.52 | -11.48 | 241.51 | -80.16 | 102.73 | 0.9906 | -102.0 | -109.3 | |
| 0.00 | 1.24 | 0.00 | 5.21 | -11.54 | 240.24 | -81.43 | 102.60 | 0.9933 | -329.0 | -336.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
