SDO HMI 2014-09-20 17:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.71 | 9.48 | 0.39 | 5.07 | -10.00 | 332.96 | 12.39 | 214.24 | 0.3686 | 418.8 | 265.8 | |
|
previous
or next observation for the same group /

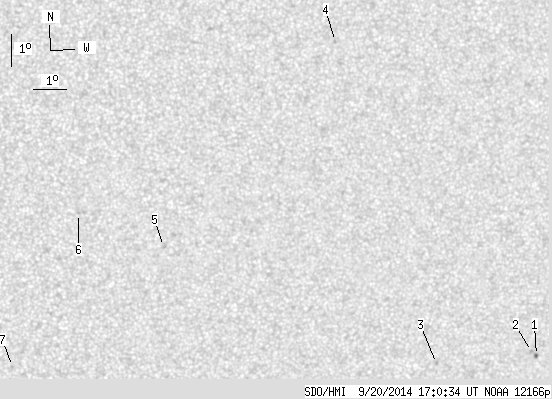

back to the solar disc SDO HMI 2014-09-20 17:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.71 | 2.13 | 0.39 | 1.18 | -12.43 | 339.41 | 18.84 | 223.91 | 0.4567 | 794.0 | 646.2 | |
| 0.00 | 1.24 | 0.00 | 0.69 | -12.29 | 339.24 | 18.67 | 223.85 | 0.4534 | 950.0 | 720.9 | |
| 0.00 | 1.24 | 0.00 | 0.68 | -12.55 | 336.19 | 15.62 | 218.39 | 0.4251 | 870.0 | 678.8 | |
| 0.00 | 1.15 | 0.00 | 0.59 | -2.42 | 332.70 | 12.13 | 232.25 | 0.2667 | 790.0 | 666.2 | |
| 0.00 | 1.77 | 0.00 | 0.92 | -8.63 | 327.51 | 6.94 | 203.87 | 0.2967 | -511.0 | -553.0 | |
| 0.00 | 1.15 | 0.00 | 0.59 | -7.56 | 324.90 | 4.33 | 196.50 | 0.2648 | -799.0 | -548.0 | |
| 0.00 | 0.80 | 0.00 | 0.42 | -12.37 | 322.92 | 2.35 | 186.87 | 0.3369 | 691.0 | 512.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
