SDO HMI 2014-09-20 17:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 8.94 | 0.00 | 5.79 | -16.36 | 288.15 | -32.42 | 126.49 | 0.6409 | 341.0 | 315.3 | |
|
previous
or next observation for the same group /

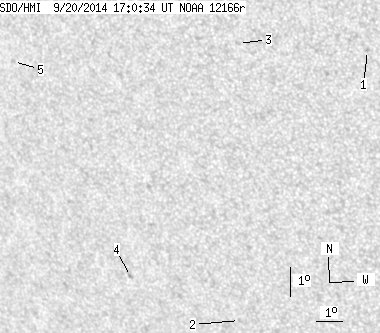

back to the solar disc SDO HMI 2014-09-20 17:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.59 | 0.00 | 0.93 | -12.84 | 295.42 | -25.15 | 128.49 | 0.5315 | 754.0 | 555.1 | |
| 0.00 | 1.33 | 0.00 | 0.89 | -22.13 | 289.21 | -31.36 | 134.37 | 0.6766 | 141.0 | 188.1 | |
| 0.00 | 2.21 | 0.00 | 1.35 | -12.88 | 290.92 | -29.65 | 124.04 | 0.5841 | 116.0 | 229.2 | |
| 0.00 | 1.86 | 0.00 | 1.29 | -20.91 | 285.30 | -35.27 | 129.74 | 0.7037 | 579.0 | 420.7 | |
| 0.00 | 1.95 | 0.00 | 1.33 | -14.07 | 282.30 | -38.26 | 119.16 | 0.6902 | 115.0 | 217.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
