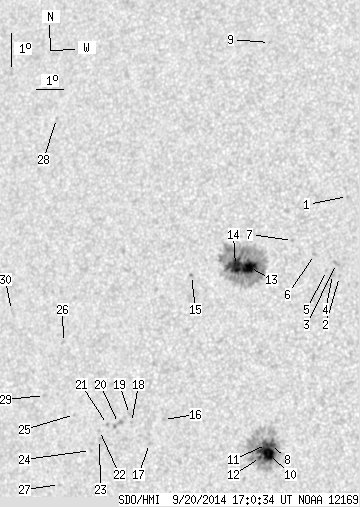

SDO HMI 2014-09-20 17:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 46.14 | 292.90 | 26.43 | 168.26 | 8.43 | 290.09 | -30.48 | 85.47 | 0.5069 | -522.7 | -327.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-20 17:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.06 | 0.00 | 0.59 | 13.08 | 293.30 | -27.27 | 75.23 | 0.4635 | -844.0 | -650.2 | |
| 0.00 | 0.97 | 0.00 | 0.54 | 10.66 | 293.28 | -27.29 | 80.47 | 0.4588 | -676.0 | -583.0 | |
| 0.00 | 2.83 | 0.00 | 1.58 | 11.04 | 293.14 | -27.43 | 79.66 | 0.4615 | -915.0 | -702.2 | |
| 0.00 | 1.86 | 0.00 | 1.04 | 10.70 | 293.03 | -27.53 | 80.41 | 0.4626 | -894.0 | -786.5 | |
| 0.00 | 1.15 | 0.00 | 0.64 | 10.81 | 292.81 | -27.75 | 80.22 | 0.4660 | -658.0 | -546.2 | |
| 0.00 | 1.33 | 0.00 | 0.75 | 11.27 | 292.35 | -28.22 | 79.35 | 0.4738 | -774.0 | -593.1 | |
| 0.00 | 1.15 | 0.00 | 0.65 | 11.65 | 291.54 | -29.03 | 78.74 | 0.4866 | -786.0 | -590.2 | |
| 1.59 | 109.30 | 0.90 | 62.13 | 5.47 | 291.28 | -29.29 | 91.48 | 0.4891 | -979.5 | -397.3 | |
| 0.00 | 0.97 | 0.00 | 0.57 | 17.59 | 289.82 | -30.74 | 67.82 | 0.5283 | -701.0 | -592.8 | |
| 10.36 | -8.00 | 5.88 | -8.00 | 5.17 | 291.23 | -29.34 | 92.09 | 0.4903 | -1143.4 | 999999 | |
| 0.89 | -8.00 | 0.50 | -8.00 | 5.47 | 291.14 | -29.43 | 91.47 | 0.4912 | -849.2 | 999999 | |
| 1.24 | -8.00 | 0.71 | -8.00 | 5.06 | 290.95 | -29.61 | 92.26 | 0.4946 | -789.2 | 999999 | |
| 16.47 | 150.40 | 9.45 | 86.49 | 10.75 | 290.12 | -30.45 | 80.82 | 0.5064 | -1219.3 | -398.3 | |
| 15.59 | -13.00 | 8.99 | -13.00 | 10.78 | 289.61 | -30.95 | 80.84 | 0.5138 | -887.4 | 999999 | |
| 0.00 | 1.15 | 0.00 | 0.67 | 10.38 | 288.07 | -32.49 | 81.78 | 0.5360 | -612.0 | -512.6 | |
| 0.00 | 1.51 | 0.00 | 0.89 | 5.99 | 287.46 | -33.11 | 89.93 | 0.5454 | 747.0 | 500.0 | |
| 0.00 | 1.24 | 0.00 | 0.74 | 5.23 | 287.00 | -33.57 | 91.24 | 0.5529 | 705.0 | 635.4 | |
| 0.00 | 0.89 | 0.00 | 0.53 | 5.82 | 286.30 | -34.26 | 90.09 | 0.5622 | 645.0 | 541.3 | |
| 0.00 | 1.15 | 0.00 | 0.69 | 6.06 | 286.21 | -34.35 | 89.66 | 0.5633 | 789.0 | 718.7 | |
| 0.00 | 4.43 | 0.00 | 2.66 | 5.76 | 285.83 | -34.74 | 90.14 | 0.5691 | 770.0 | 702.0 | |
| 0.00 | 1.15 | 0.00 | 0.70 | 5.70 | 285.43 | -35.14 | 90.19 | 0.5749 | 887.0 | 794.9 | |
| 0.00 | 0.80 | 0.00 | 0.48 | 5.50 | 285.14 | -35.42 | 90.51 | 0.5791 | 578.0 | 564.4 | |
| 0.00 | 1.68 | 0.00 | 1.02 | 5.23 | 285.16 | -35.40 | 90.98 | 0.5792 | 809.0 | 648.3 | |
| 0.00 | 1.24 | 0.00 | 0.76 | 4.87 | 284.85 | -35.72 | 91.54 | 0.5841 | 689.0 | 540.7 | |
| 0.00 | 0.89 | 0.00 | 0.54 | 5.91 | 284.18 | -36.39 | 89.68 | 0.5923 | 557.0 | 529.7 | |
| 0.00 | 1.42 | 0.00 | 0.88 | 8.04 | 283.57 | -37.00 | 86.05 | 0.5995 | 374.0 | 418.1 | |
| 0.00 | 0.97 | 0.00 | 0.60 | 3.77 | 283.74 | -36.82 | 93.20 | 0.6012 | 417.0 | 273.5 | |
| 0.00 | 1.06 | 0.00 | 0.67 | 14.75 | 282.26 | -38.30 | 75.15 | 0.6224 | -603.0 | -503.6 | |
| 0.00 | 1.24 | 0.00 | 0.77 | 6.40 | 283.00 | -37.57 | 88.74 | 0.6083 | 648.0 | 513.9 | |
| 0.00 | 1.06 | 0.00 | 0.68 | 8.85 | 281.46 | -39.10 | 84.68 | 0.6282 | 577.0 | 506.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
