SDO HMI 2014-09-20 17:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 23.74 | 161.04 | 113.16 | 852.29 | -10.86 | 238.03 | -82.54 | 101.78 | 0.9939 | -35.0 | -220.7 | |
|
previous
or next observation for the same group /

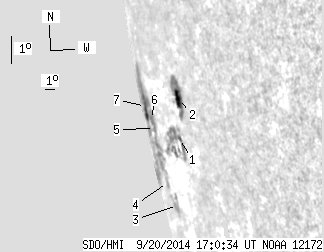

back to the solar disc SDO HMI 2014-09-20 17:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.24 | 36.58 | 3.31 | 108.75 | -10.89 | 242.87 | -77.70 | 102.54 | 0.9837 | 382.5 | -32.8 | |
| 9.12 | 28.08 | 22.21 | 68.68 | -9.53 | 243.84 | -76.72 | 101.33 | 0.9798 | 290.6 | 144.8 | |
| 0.00 | 8.95 | 0.00 | 37.11 | -13.40 | 239.57 | -81.00 | 104.51 | 0.9930 | 151.0 | 1.2 | |
| 0.00 | 3.99 | 0.00 | 19.24 | -12.83 | 238.30 | -82.27 | 103.76 | 0.9952 | -261.0 | -230.0 | |
| 0.71 | 83.44 | 3.45 | 618.51 | -11.20 | 237.88 | -82.69 | 102.08 | 0.9954 | -443.4 | -305.2 | |
| 2.66 | -5.00 | 13.88 | -5.00 | -10.97 | 237.48 | -83.08 | 101.79 | 0.9960 | -508.8 | 999999 | |
| 10.01 | -5.00 | 70.31 | -5.00 | -10.73 | 236.16 | -84.41 | 101.37 | 0.9977 | -43.3 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
