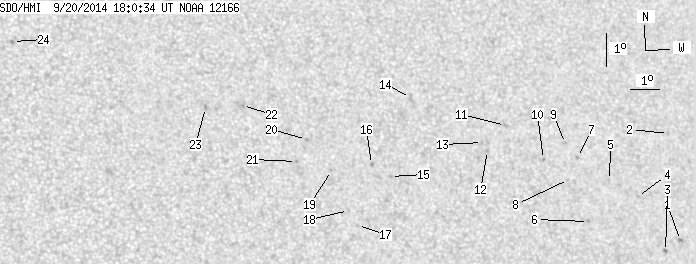

SDO HMI 2014-09-20 18:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 30.19 | 0.00 | 17.54 | 13.90 | 350.59 | 30.58 | 286.32 | 0.5144 | -78.1 | -117.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-20 18:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.30 | 0.00 | 1.44 | 10.99 | 358.15 | 38.13 | 278.80 | 0.6156 | -711.0 | -563.2 | |
| 0.00 | 1.24 | 0.00 | 0.78 | 14.24 | 358.26 | 38.24 | 284.04 | 0.6207 | -562.0 | -453.6 | |
| 0.00 | 1.86 | 0.00 | 1.16 | 10.71 | 357.52 | 37.51 | 278.37 | 0.6070 | -738.0 | -658.9 | |
| 0.00 | 1.33 | 0.00 | 0.82 | 12.44 | 356.71 | 36.70 | 281.34 | 0.5974 | -686.0 | -580.3 | |
| 0.00 | 0.80 | 0.00 | 0.49 | 13.00 | 355.73 | 35.72 | 282.43 | 0.5847 | -648.0 | -439.6 | |
| 0.00 | 0.97 | 0.00 | 0.59 | 11.82 | 354.75 | 34.74 | 280.55 | 0.5695 | -763.0 | -643.4 | |
| 0.00 | 1.06 | 0.00 | 0.64 | 13.77 | 354.65 | 34.64 | 283.99 | 0.5711 | -781.0 | -587.6 | |
| 0.00 | 0.62 | 0.00 | 0.37 | 13.13 | 354.20 | 34.19 | 282.96 | 0.5637 | -799.0 | -651.3 | |
| 0.00 | 0.97 | 0.00 | 0.58 | 14.23 | 354.28 | 34.26 | 284.87 | 0.5668 | -481.0 | -480.4 | |
| 0.00 | 0.97 | 0.00 | 0.58 | 13.80 | 353.38 | 33.37 | 284.33 | 0.5534 | -680.0 | -582.6 | |
| 0.00 | 1.68 | 0.00 | 0.99 | 14.92 | 352.16 | 32.15 | 286.71 | 0.5389 | -754.0 | -628.8 | |
| 0.00 | 1.68 | 0.00 | 0.98 | 14.20 | 351.38 | 31.37 | 285.63 | 0.5261 | -797.0 | -643.1 | |
| 0.00 | 0.35 | 0.00 | 0.21 | 14.46 | 351.24 | 31.23 | 286.16 | 0.5247 | -748.0 | -662.5 | |
| 0.00 | 2.48 | 0.00 | 1.41 | 15.98 | 348.88 | 28.87 | 290.02 | 0.4960 | -650.0 | -544.5 | |
| 0.00 | 1.06 | 0.00 | 0.60 | 13.63 | 347.84 | 27.82 | 285.71 | 0.4731 | 735.0 | 601.3 | |
| 0.00 | 1.51 | 0.00 | 0.84 | 14.03 | 347.22 | 27.21 | 286.80 | 0.4653 | 896.0 | 705.4 | |
| 0.00 | 0.89 | 0.00 | 0.49 | 12.21 | 346.52 | 26.51 | 283.15 | 0.4498 | 695.0 | 543.3 | |
| 0.00 | 0.80 | 0.00 | 0.44 | 12.68 | 346.26 | 26.25 | 284.27 | 0.4471 | 622.0 | 493.7 | |
| 0.00 | 1.15 | 0.00 | 0.64 | 13.92 | 345.82 | 25.81 | 287.20 | 0.4442 | 720.0 | 534.5 | |
| 0.00 | 1.24 | 0.00 | 0.68 | 14.90 | 345.08 | 25.07 | 289.76 | 0.4369 | 947.0 | 775.4 | |
| 0.00 | 0.80 | 0.00 | 0.44 | 14.26 | 344.66 | 24.65 | 288.54 | 0.4281 | 783.0 | 663.3 | |
| 0.00 | 1.33 | 0.00 | 0.72 | 16.04 | 343.04 | 23.02 | 293.70 | 0.4122 | 796.0 | 700.6 | |
| 0.00 | 1.59 | 0.00 | 0.86 | 16.04 | 341.78 | 21.77 | 294.70 | 0.3940 | 802.0 | 706.6 | |
| 0.00 | 1.51 | 0.00 | 0.79 | 18.31 | 335.60 | 15.58 | 307.92 | 0.3247 | 927.0 | 780.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
