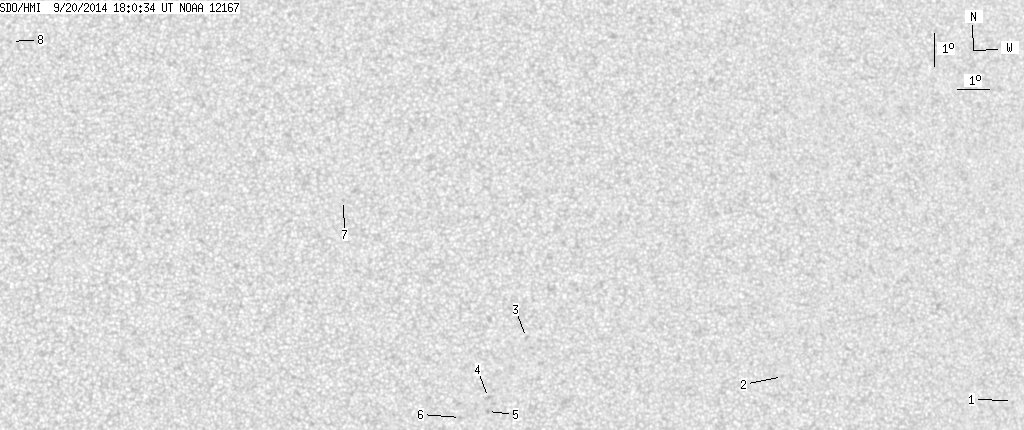

SDO HMI 2014-09-20 18:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 9.47 | 0.00 | 4.82 | 9.22 | 329.99 | 9.97 | 267.14 | 0.1976 | 479.0 | 421.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-20 18:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.53 | 0.00 | 0.29 | 7.12 | 345.78 | 25.77 | 271.67 | 0.4334 | -285.0 | -324.8 | |
| 0.00 | 1.24 | 0.00 | 0.65 | 8.19 | 338.30 | 18.28 | 274.66 | 0.3129 | -746.0 | -512.2 | |
| 0.00 | 0.97 | 0.00 | 0.49 | 9.62 | 330.30 | 10.29 | 284.63 | 0.1828 | 755.0 | 436.4 | |
| 0.00 | 2.39 | 0.00 | 1.20 | 7.84 | 329.08 | 9.06 | 275.30 | 0.1574 | 983.0 | 725.5 | |
| 0.00 | 1.51 | 0.00 | 0.76 | 7.42 | 329.04 | 9.02 | 272.63 | 0.1564 | 810.0 | 642.2 | |
| 0.00 | 1.15 | 0.00 | 0.58 | 7.25 | 328.20 | 8.19 | 271.62 | 0.1420 | 898.0 | 717.8 | |
| 0.00 | 1.15 | 0.00 | 0.58 | 13.85 | 324.74 | 4.73 | 325.85 | 0.1433 | 823.0 | 610.7 | |
| 0.00 | 0.53 | 0.00 | 0.27 | 18.70 | 314.31 | -5.71 | 25.03 | 0.2236 | 594.0 | 432.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
