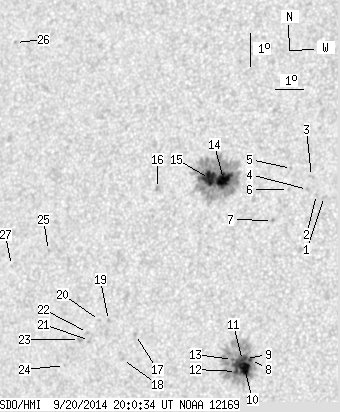

SDO HMI 2014-09-20 20:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 44.65 | 297.83 | 25.16 | 168.09 | 8.40 | 290.27 | -28.64 | 85.54 | 0.4793 | -651.8 | -345.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-20 20:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.59 | 0.00 | 0.87 | 10.47 | 293.62 | -25.28 | 80.49 | 0.4276 | -807.0 | -676.0 | |
| 0.00 | 1.24 | 0.00 | 0.68 | 10.52 | 293.35 | -25.56 | 80.44 | 0.4320 | -737.0 | -593.1 | |
| 0.00 | 2.04 | 0.00 | 1.12 | 11.05 | 293.13 | -25.78 | 79.27 | 0.4362 | -805.0 | -680.3 | |
| 0.00 | 1.51 | 0.00 | 0.83 | 10.65 | 293.03 | -25.88 | 80.20 | 0.4371 | -966.0 | -719.2 | |
| 0.00 | 1.42 | 0.00 | 0.78 | 11.25 | 292.43 | -26.48 | 78.99 | 0.4474 | -655.0 | -450.1 | |
| 0.00 | 0.71 | 0.00 | 0.39 | 10.62 | 292.39 | -26.52 | 80.42 | 0.4470 | -824.0 | -659.4 | |
| 0.00 | 1.15 | 0.00 | 0.64 | 9.65 | 291.92 | -26.99 | 82.64 | 0.4529 | -799.0 | -676.2 | |
| 1.33 | 118.41 | 0.74 | 66.29 | 5.44 | 291.45 | -27.46 | 91.89 | 0.4611 | -1158.6 | -382.3 | |
| 0.27 | -8.00 | 0.15 | -8.00 | 5.46 | 291.28 | -27.63 | 91.82 | 0.4638 | -996.3 | 999999 | |
| 9.83 | -8.00 | 5.49 | -8.00 | 5.19 | 291.26 | -27.65 | 92.40 | 0.4645 | -1215.0 | 999999 | |
| 0.27 | -8.00 | 0.15 | -8.00 | 5.39 | 291.18 | -27.73 | 91.94 | 0.4654 | -920.7 | 999999 | |
| 1.51 | -8.00 | 0.84 | -8.00 | 5.05 | 290.99 | -27.92 | 92.64 | 0.4688 | -864.2 | 999999 | |
| 0.27 | -8.00 | 0.15 | -8.00 | 5.40 | 290.84 | -28.07 | 91.85 | 0.4706 | -636.7 | 999999 | |
| 17.18 | 153.22 | 9.70 | 86.71 | 10.79 | 290.12 | -28.79 | 80.47 | 0.4817 | -1271.2 | -397.3 | |
| 13.99 | -14.00 | 7.94 | -14.00 | 10.79 | 289.63 | -29.28 | 80.55 | 0.4890 | -965.1 | 999999 | |
| 0.00 | 2.21 | 0.00 | 1.28 | 10.38 | 287.83 | -31.08 | 81.63 | 0.5153 | -654.0 | -522.2 | |
| 0.00 | 1.59 | 0.00 | 0.92 | 5.95 | 287.42 | -31.49 | 90.22 | 0.5215 | 717.0 | 626.1 | |
| 0.00 | 1.51 | 0.00 | 0.88 | 5.17 | 287.01 | -31.90 | 91.64 | 0.5286 | 762.0 | 580.6 | |
| 0.00 | 1.15 | 0.00 | 0.67 | 6.31 | 286.43 | -32.47 | 89.42 | 0.5358 | 772.0 | 618.8 | |
| 0.00 | 1.15 | 0.00 | 0.68 | 6.29 | 286.11 | -32.80 | 89.43 | 0.5405 | 713.0 | 548.7 | |
| 0.00 | 1.59 | 0.00 | 0.94 | 5.66 | 285.79 | -33.12 | 90.54 | 0.5458 | 772.0 | 687.3 | |
| 0.00 | 1.59 | 0.00 | 0.94 | 5.90 | 285.70 | -33.21 | 90.09 | 0.5469 | 771.0 | 655.9 | |
| 0.00 | 2.21 | 0.00 | 1.31 | 5.67 | 285.43 | -33.48 | 90.48 | 0.5511 | 808.0 | 751.4 | |
| 0.00 | 0.80 | 0.00 | 0.48 | 4.85 | 284.93 | -33.98 | 91.87 | 0.5593 | 651.0 | 553.3 | |
| 0.00 | 0.97 | 0.00 | 0.59 | 8.26 | 284.08 | -34.83 | 85.73 | 0.5690 | 765.0 | 651.3 | |
| 0.00 | 1.15 | 0.00 | 0.71 | 14.43 | 281.93 | -36.97 | 75.42 | 0.6041 | -571.0 | -441.1 | |
| 0.00 | 0.62 | 0.00 | 0.38 | 7.72 | 282.75 | -36.16 | 86.64 | 0.5879 | 530.0 | 416.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
