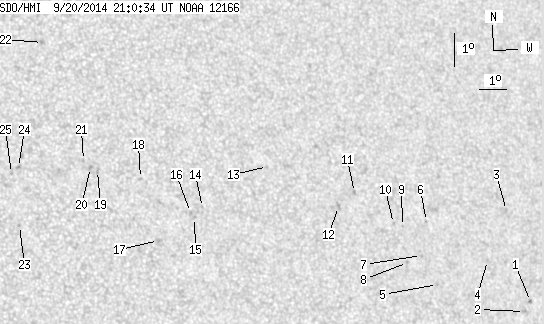

SDO HMI 2014-09-20 21:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 34.46 | 0.00 | 20.09 | 14.46 | 349.22 | 30.86 | 287.24 | 0.5200 | 10.9 | -5.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-20 21:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.42 | 0.00 | 0.91 | 11.07 | 358.29 | 39.93 | 278.80 | 0.6397 | -702.0 | -615.3 | |
| 0.00 | 1.95 | 0.00 | 1.25 | 10.79 | 358.00 | 39.65 | 278.38 | 0.6358 | -617.0 | -475.0 | |
| 0.00 | 1.68 | 0.00 | 1.08 | 13.88 | 357.84 | 39.49 | 283.25 | 0.6365 | -633.0 | -489.8 | |
| 0.00 | 0.89 | 0.00 | 0.56 | 12.43 | 356.81 | 38.45 | 281.10 | 0.6211 | -508.0 | -464.3 | |
| 0.00 | 1.06 | 0.00 | 0.65 | 11.86 | 354.77 | 36.41 | 280.39 | 0.5929 | -668.0 | -538.5 | |
| 0.00 | 0.89 | 0.00 | 0.54 | 13.78 | 354.67 | 36.32 | 283.64 | 0.5941 | -717.0 | -542.2 | |
| 0.00 | 1.06 | 0.00 | 0.65 | 12.77 | 354.31 | 35.95 | 282.01 | 0.5876 | -662.0 | -624.2 | |
| 0.00 | 1.15 | 0.00 | 0.70 | 12.60 | 353.75 | 35.39 | 281.80 | 0.5796 | -685.0 | -521.8 | |
| 0.00 | 0.80 | 0.00 | 0.48 | 13.70 | 353.74 | 35.38 | 283.69 | 0.5812 | -469.0 | -426.1 | |
| 0.00 | 0.89 | 0.00 | 0.54 | 13.81 | 353.42 | 35.06 | 283.95 | 0.5770 | -733.0 | -675.0 | |
| 0.00 | 1.51 | 0.00 | 0.90 | 14.85 | 352.13 | 33.77 | 286.08 | 0.5614 | -743.0 | -585.1 | |
| 0.00 | 3.01 | 0.00 | 1.79 | 14.46 | 351.46 | 33.11 | 285.59 | 0.5512 | -827.0 | -693.1 | |
| 0.00 | 0.35 | 0.00 | 0.21 | 15.84 | 349.09 | 30.73 | 288.93 | 0.5218 | -689.0 | -611.0 | |
| 0.00 | 0.80 | 0.00 | 0.45 | 14.74 | 346.58 | 28.22 | 287.83 | 0.4824 | 644.0 | 506.3 | |
| 0.00 | 1.24 | 0.00 | 0.70 | 14.45 | 346.26 | 27.90 | 287.38 | 0.4768 | 722.0 | 581.2 | |
| 0.00 | 1.77 | 0.00 | 1.00 | 14.61 | 346.14 | 27.78 | 287.76 | 0.4756 | 590.0 | 461.6 | |
| 0.00 | 2.30 | 0.00 | 1.28 | 13.83 | 344.92 | 26.56 | 286.64 | 0.4550 | 736.0 | 461.5 | |
| 0.00 | 1.24 | 0.00 | 0.69 | 15.74 | 344.54 | 26.19 | 290.92 | 0.4566 | 738.0 | 635.4 | |
| 0.00 | 2.30 | 0.00 | 1.27 | 16.06 | 343.10 | 24.74 | 292.50 | 0.4371 | 777.0 | 610.0 | |
| 0.00 | 1.68 | 0.00 | 0.92 | 16.16 | 342.87 | 24.51 | 292.88 | 0.4343 | 916.0 | 755.3 | |
| 0.00 | 1.15 | 0.00 | 0.63 | 16.39 | 342.66 | 24.30 | 293.52 | 0.4324 | 775.0 | 563.2 | |
| 0.00 | 2.13 | 0.00 | 1.17 | 20.06 | 341.78 | 23.42 | 302.06 | 0.4424 | 776.0 | 621.8 | |
| 0.00 | 0.80 | 0.00 | 0.43 | 14.52 | 340.26 | 21.90 | 290.88 | 0.3882 | 714.0 | 637.2 | |
| 0.00 | 1.42 | 0.00 | 0.77 | 16.28 | 340.42 | 22.07 | 295.00 | 0.3996 | 719.0 | 575.6 | |
| 0.00 | 0.97 | 0.00 | 0.52 | 16.11 | 340.17 | 21.81 | 294.81 | 0.3950 | 818.0 | 614.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
