SDO HMI 2014-09-20 21:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 8.23 | 0.00 | 4.52 | -11.19 | 334.64 | 16.29 | 219.15 | 0.4173 | 358.4 | 233.4 | |
|
previous
or next observation for the same group /

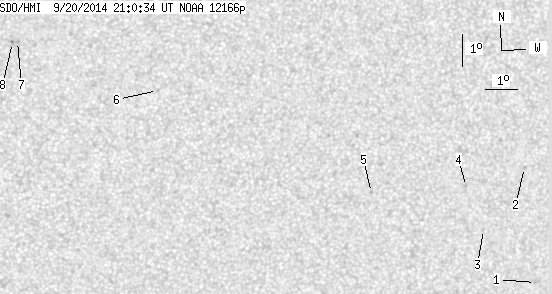

back to the solar disc SDO HMI 2014-09-20 21:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.89 | 0.00 | 0.52 | -15.65 | 342.08 | 23.72 | 225.81 | 0.5425 | 656.0 | 485.5 | |
| 0.00 | 1.15 | 0.00 | 0.66 | -11.91 | 341.32 | 22.96 | 230.36 | 0.4976 | 770.0 | 615.0 | |
| 0.00 | 1.06 | 0.00 | 0.61 | -13.83 | 340.12 | 21.77 | 225.92 | 0.5033 | 767.0 | 585.8 | |
| 0.00 | 0.62 | 0.00 | 0.35 | -12.42 | 339.43 | 21.08 | 227.12 | 0.4812 | 802.0 | 644.1 | |
| 0.00 | 1.15 | 0.00 | 0.64 | -12.47 | 336.33 | 17.97 | 222.46 | 0.4481 | 801.0 | 557.7 | |
| 0.00 | 1.06 | 0.00 | 0.56 | -9.02 | 329.38 | 11.02 | 214.44 | 0.3354 | 749.0 | 524.2 | |
| 0.00 | 1.15 | 0.00 | 0.59 | -7.40 | 325.04 | 6.68 | 204.81 | 0.2762 | -852.0 | -706.3 | |
| 0.00 | 1.15 | 0.00 | 0.59 | -7.43 | 324.88 | 6.53 | 204.26 | 0.2755 | -826.0 | -697.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
