SDO HMI 2014-09-20 21:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 41.45 | 243.31 | 125.23 | 881.89 | -10.98 | 239.42 | -78.93 | 102.45 | 0.9857 | 68.0 | -209.1 | |
|
previous
or next observation for the same group /

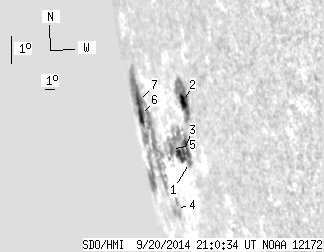

back to the solar disc SDO HMI 2014-09-20 21:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.33 | 194.24 | 2.94 | 765.75 | -11.49 | 243.11 | -75.24 | 103.56 | 0.9758 | 323.1 | -267.3 | |
| 6.64 | 35.78 | 13.76 | 74.12 | -9.51 | 243.79 | -74.56 | 101.67 | 0.9718 | 526.8 | 246.1 | |
| 18.16 | -1.00 | 41.89 | -1.00 | -11.21 | 242.58 | -75.77 | 103.19 | 0.9775 | 358.1 | 999999 | |
| 0.00 | 13.29 | 0.00 | 42.02 | -13.39 | 239.39 | -78.96 | 104.83 | 0.9884 | 170.0 | 42.8 | |
| 3.63 | -1.00 | 9.67 | -1.00 | -11.37 | 240.82 | -77.53 | 103.04 | 0.9835 | -469.8 | 999999 | |
| 6.82 | -1.00 | 33.45 | -1.00 | -10.92 | 235.88 | -82.47 | 101.83 | 0.9950 | -196.4 | 999999 | |
| 4.87 | -1.00 | 23.52 | -1.00 | -10.50 | 235.79 | -82.57 | 101.39 | 0.9951 | -156.1 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
