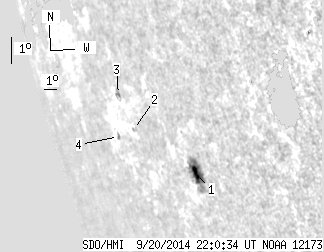

SDO HMI 2014-09-20 22:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 6.64 | 39.24 | 9.33 | 56.36 | -15.03 | 250.93 | -66.88 | 108.93 | 0.9398 | 375.4 | 144.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-20 22:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 5.93 | 32.24 | 8.10 | 43.95 | -15.31 | 252.16 | -65.65 | 109.50 | 0.9337 | 648.4 | 286.0 | |
| 0.00 | 1.06 | 0.00 | 1.80 | -14.45 | 247.52 | -70.29 | 107.53 | 0.9573 | -453.0 | -392.4 | |
| 0.71 | 3.90 | 1.23 | 6.78 | -13.42 | 246.83 | -70.97 | 106.34 | 0.9595 | -390.1 | -393.9 | |
| 0.00 | 2.04 | 0.00 | 3.83 | -14.89 | 245.70 | -72.10 | 107.60 | 0.9660 | -65.0 | -145.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
