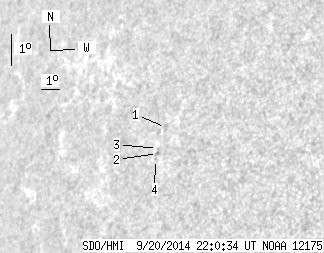

SDO HMI 2014-09-20 22:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 5.58 | 0.00 | 4.77 | 15.06 | 262.72 | -55.09 | 76.54 | 0.8164 | -374.5 | -234.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-20 22:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 3.01 | 0.00 | 2.57 | 15.43 | 262.78 | -55.02 | 76.08 | 0.8159 | -143.0 | -76.4 | |
| 0.00 | 1.68 | 0.00 | 1.44 | 14.62 | 262.66 | -55.15 | 77.09 | 0.8169 | -364.0 | -398.1 | |
| 0.00 | 0.62 | 0.00 | 0.53 | 14.76 | 262.60 | -55.20 | 76.91 | 0.8174 | -446.0 | -438.4 | |
| 0.00 | 0.27 | 0.00 | 0.23 | 14.43 | 262.62 | -55.19 | 77.32 | 0.8172 | -545.0 | -515.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
