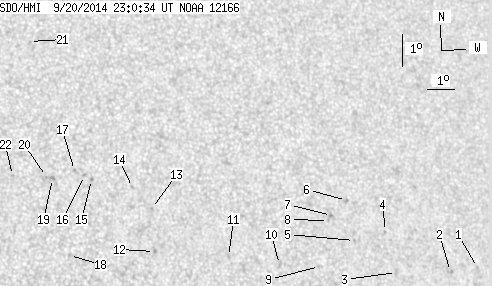

SDO HMI 2014-09-20 23:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 30.29 | 0.00 | 17.69 | 14.34 | 348.29 | 31.03 | 286.64 | 0.5218 | 196.0 | 104.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-20 23:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.06 | 0.00 | 0.68 | 12.44 | 356.86 | 39.61 | 280.97 | 0.6365 | -605.0 | -477.9 | |
| 0.00 | 2.48 | 0.00 | 1.57 | 12.40 | 355.78 | 38.53 | 281.03 | 0.6221 | -546.0 | -520.8 | |
| 0.00 | 2.21 | 0.00 | 1.36 | 12.53 | 353.70 | 36.45 | 281.51 | 0.5941 | -660.0 | -533.1 | |
| 0.00 | 0.53 | 0.00 | 0.33 | 13.79 | 353.50 | 36.24 | 283.67 | 0.5932 | -692.0 | -602.7 | |
| 0.00 | 0.89 | 0.00 | 0.54 | 13.60 | 352.28 | 35.03 | 283.60 | 0.5761 | -665.0 | -562.1 | |
| 0.00 | 2.30 | 0.00 | 1.39 | 14.83 | 352.20 | 34.94 | 285.73 | 0.5774 | -698.0 | -566.5 | |
| 0.00 | 0.97 | 0.00 | 0.59 | 14.42 | 351.55 | 34.30 | 285.18 | 0.5677 | -818.0 | -739.8 | |
| 0.00 | 0.80 | 0.00 | 0.48 | 14.27 | 351.41 | 34.16 | 284.97 | 0.5655 | -698.0 | -604.9 | |
| 0.00 | 1.33 | 0.00 | 0.79 | 12.91 | 350.85 | 33.60 | 282.68 | 0.5550 | 702.0 | 437.2 | |
| 0.00 | 2.66 | 0.00 | 1.56 | 13.07 | 349.40 | 32.15 | 283.28 | 0.5347 | 35.0 | 125.6 | |
| 0.00 | 1.51 | 0.00 | 0.87 | 13.43 | 347.61 | 30.35 | 284.44 | 0.5096 | 588.0 | 497.5 | |
| 0.00 | 1.42 | 0.00 | 0.80 | 13.73 | 345.02 | 27.77 | 285.94 | 0.4726 | 878.0 | 763.2 | |
| 0.00 | 1.06 | 0.00 | 0.60 | 15.04 | 345.10 | 27.84 | 288.61 | 0.4779 | 774.0 | 664.8 | |
| 0.00 | 1.24 | 0.00 | 0.70 | 15.71 | 344.52 | 27.27 | 290.27 | 0.4721 | 668.0 | 516.5 | |
| 0.00 | 1.24 | 0.00 | 0.69 | 16.03 | 343.13 | 25.88 | 291.72 | 0.4535 | 805.0 | 677.9 | |
| 0.00 | 1.24 | 0.00 | 0.69 | 16.17 | 342.91 | 25.66 | 292.14 | 0.4508 | 789.0 | 689.0 | |
| 0.00 | 1.24 | 0.00 | 0.69 | 16.34 | 342.59 | 25.33 | 292.71 | 0.4470 | 750.0 | 584.3 | |
| 0.00 | 1.42 | 0.00 | 0.78 | 13.77 | 342.09 | 24.83 | 287.32 | 0.4291 | 752.0 | 594.8 | |
| 0.00 | 2.21 | 0.00 | 1.22 | 16.13 | 341.80 | 24.54 | 292.79 | 0.4346 | 754.0 | 625.8 | |
| 0.00 | 0.71 | 0.00 | 0.39 | 16.21 | 341.60 | 24.35 | 293.08 | 0.4321 | 885.0 | 750.9 | |
| 0.00 | 0.71 | 0.00 | 0.39 | 20.36 | 341.64 | 24.38 | 301.77 | 0.4571 | 624.0 | 520.6 | |
| 0.00 | 1.06 | 0.00 | 0.58 | 16.29 | 340.44 | 23.19 | 294.12 | 0.4159 | 689.0 | 551.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
