SDO HMI 2014-09-20 23:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 8.94 | 0.00 | 4.95 | -11.14 | 335.30 | 18.05 | 222.77 | 0.4345 | 169.9 | 66.3 | |
|
previous
or next observation for the same group /

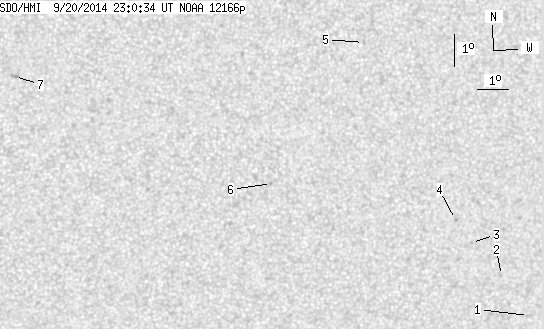

back to the solar disc SDO HMI 2014-09-20 23:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.04 | 0.00 | 1.21 | -15.57 | 342.03 | 24.78 | 227.14 | 0.5529 | 657.0 | 523.0 | |
| 0.00 | 0.53 | 0.00 | 0.31 | -14.22 | 340.95 | 23.69 | 227.78 | 0.5281 | 605.0 | 574.5 | |
| 0.00 | 0.53 | 0.00 | 0.30 | -13.10 | 339.82 | 22.57 | 228.03 | 0.5047 | 395.0 | 339.7 | |
| 0.00 | 1.24 | 0.00 | 0.70 | -12.34 | 339.22 | 21.96 | 228.43 | 0.4904 | 619.0 | 591.6 | |
| 0.00 | 1.15 | 0.00 | 0.62 | -6.63 | 335.87 | 18.62 | 233.93 | 0.3939 | 524.0 | 432.8 | |
| 0.00 | 0.97 | 0.00 | 0.53 | -10.93 | 333.13 | 15.88 | 221.38 | 0.4082 | -794.0 | -637.0 | |
| 0.00 | 2.48 | 0.00 | 1.28 | -7.35 | 325.00 | 7.75 | 208.28 | 0.2835 | -817.0 | -729.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
