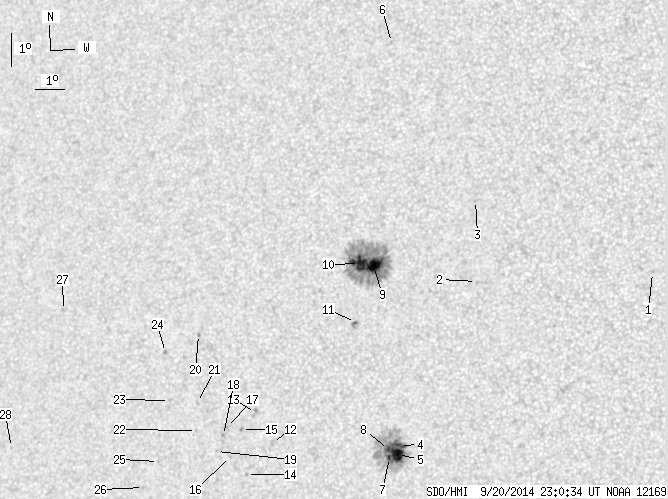

SDO HMI 2014-09-20 23:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 50.14 | 286.83 | 27.82 | 160.09 | 8.48 | 289.84 | -27.41 | 85.30 | 0.4605 | -423.8 | -288.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-20 23:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.44 | 0.00 | 0.23 | 11.01 | 299.34 | -17.91 | 76.23 | 0.3121 | -705.0 | -510.4 | |
| 0.00 | 0.71 | 0.00 | 0.38 | 10.50 | 293.61 | -23.64 | 80.02 | 0.4021 | -731.0 | -612.2 | |
| 0.00 | 0.97 | 0.00 | 0.53 | 12.93 | 293.36 | -23.90 | 74.17 | 0.4121 | -814.0 | -636.2 | |
| 4.43 | 98.77 | 2.44 | 54.48 | 5.44 | 291.35 | -25.90 | 92.20 | 0.4371 | -1056.4 | -395.7 | |
| 12.05 | -4.00 | 6.63 | -4.00 | 5.16 | 291.29 | -25.96 | 92.82 | 0.4383 | -1201.0 | 999999 | |
| 0.00 | 1.24 | 0.00 | 0.70 | 17.58 | 289.84 | -27.41 | 66.05 | 0.4822 | -652.0 | -506.5 | |
| 1.77 | -4.00 | 0.98 | -4.00 | 5.06 | 291.03 | -26.23 | 93.00 | 0.4426 | -811.2 | 999999 | |
| 1.77 | -4.00 | 0.98 | -4.00 | 5.30 | 290.98 | -26.27 | 92.45 | 0.4429 | -776.2 | 999999 | |
| 14.53 | 156.18 | 8.08 | 87.06 | 10.80 | 290.09 | -27.17 | 80.15 | 0.4571 | -1308.1 | -421.1 | |
| 15.06 | -9.00 | 8.41 | -9.00 | 10.83 | 289.60 | -27.65 | 80.18 | 0.4645 | -951.2 | 999999 | |
| 0.53 | 3.54 | 0.30 | 1.98 | 9.05 | 289.62 | -27.63 | 84.03 | 0.4624 | 932.8 | 762.1 | |
| 0.00 | 2.75 | 0.00 | 1.57 | 5.28 | 287.00 | -30.26 | 91.72 | 0.5040 | 763.0 | 693.4 | |
| 0.00 | 3.19 | 0.00 | 1.84 | 6.14 | 286.35 | -30.90 | 89.92 | 0.5127 | 768.0 | 702.4 | |
| 0.00 | 1.24 | 0.00 | 0.72 | 4.26 | 286.13 | -31.12 | 93.54 | 0.5185 | 794.0 | 610.5 | |
| 0.00 | 1.68 | 0.00 | 0.97 | 5.60 | 285.89 | -31.37 | 90.91 | 0.5201 | 849.0 | 698.2 | |
| 0.00 | 1.33 | 0.00 | 0.77 | 4.77 | 285.54 | -31.71 | 92.45 | 0.5264 | 593.0 | 404.9 | |
| 0.00 | 1.77 | 0.00 | 1.03 | 5.63 | 285.35 | -31.90 | 90.78 | 0.5280 | 952.0 | 618.2 | |
| 0.00 | 1.15 | 0.00 | 0.67 | 5.38 | 285.26 | -31.99 | 91.24 | 0.5297 | 945.0 | 843.7 | |
| 0.00 | 0.97 | 0.00 | 0.57 | 4.88 | 285.04 | -32.22 | 92.13 | 0.5336 | 648.0 | 549.0 | |
| 0.00 | 1.42 | 0.00 | 0.84 | 8.36 | 284.13 | -33.12 | 85.59 | 0.5443 | 806.0 | 722.2 | |
| 0.00 | 1.86 | 0.00 | 1.10 | 6.31 | 284.26 | -32.99 | 89.37 | 0.5433 | 448.0 | 435.5 | |
| 0.00 | 0.53 | 0.00 | 0.31 | 5.47 | 284.28 | -32.97 | 90.92 | 0.5439 | 509.0 | 406.2 | |
| 0.00 | 1.15 | 0.00 | 0.69 | 6.30 | 283.25 | -34.01 | 89.27 | 0.5581 | 687.0 | 451.7 | |
| 0.00 | 1.68 | 0.00 | 1.01 | 7.73 | 282.98 | -34.27 | 86.69 | 0.5611 | 778.0 | 641.8 | |
| 0.00 | 0.80 | 0.00 | 0.48 | 4.44 | 282.96 | -34.29 | 92.55 | 0.5644 | 567.0 | 510.8 | |
| 0.00 | 0.89 | 0.00 | 0.53 | 3.62 | 282.45 | -34.80 | 93.88 | 0.5731 | 498.0 | 461.7 | |
| 0.00 | 1.51 | 0.00 | 0.95 | 8.72 | 279.02 | -38.23 | 84.92 | 0.6163 | 304.0 | 312.7 | |
| 0.00 | 1.06 | 0.00 | 0.68 | 4.45 | 277.38 | -39.87 | 91.57 | 0.6417 | 334.0 | 350.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
