SDO HMI 2014-09-21 00:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 23.58 | 0.00 | 13.75 | 14.50 | 348.03 | 31.33 | 286.65 | 0.5262 | 135.4 | 65.6 | |
|
previous
or next observation for the same group /

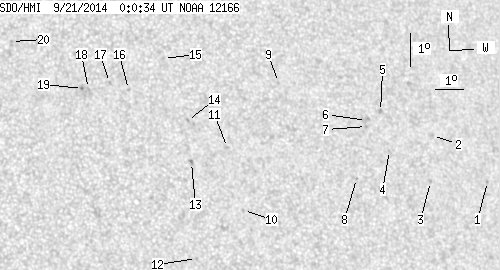

back to the solar disc SDO HMI 2014-09-21 00:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.15 | 0.00 | 0.73 | 12.41 | 355.91 | 39.21 | 280.97 | 0.6311 | -751.0 | -610.8 | |
| 0.00 | 1.06 | 0.00 | 0.66 | 13.95 | 354.03 | 37.33 | 283.74 | 0.6080 | -479.0 | -436.2 | |
| 0.00 | 1.24 | 0.00 | 0.77 | 12.58 | 353.70 | 37.00 | 281.52 | 0.6016 | -678.0 | -595.0 | |
| 0.00 | 0.62 | 0.00 | 0.38 | 13.62 | 352.30 | 35.60 | 283.52 | 0.5841 | -607.0 | -532.3 | |
| 0.00 | 1.95 | 0.00 | 1.19 | 14.82 | 352.18 | 35.48 | 285.59 | 0.5847 | -728.0 | -574.6 | |
| 0.00 | 2.13 | 0.00 | 1.29 | 14.59 | 351.60 | 34.90 | 285.33 | 0.5763 | -581.0 | -574.5 | |
| 0.00 | 1.06 | 0.00 | 0.64 | 14.41 | 351.57 | 34.87 | 285.02 | 0.5755 | -834.0 | -718.4 | |
| 0.00 | 0.71 | 0.00 | 0.42 | 12.87 | 350.93 | 34.23 | 282.47 | 0.5638 | 619.0 | 530.6 | |
| 0.00 | 0.80 | 0.00 | 0.47 | 15.96 | 348.55 | 31.85 | 288.70 | 0.5378 | -695.0 | -569.4 | |
| 0.00 | 0.89 | 0.00 | 0.51 | 12.17 | 346.71 | 30.01 | 282.07 | 0.5020 | 674.0 | 558.0 | |
| 0.00 | 1.33 | 0.00 | 0.76 | 14.10 | 346.40 | 29.70 | 285.98 | 0.5019 | 725.0 | 563.1 | |
| 0.00 | 0.89 | 0.00 | 0.50 | 10.83 | 344.90 | 28.20 | 279.70 | 0.4728 | 565.0 | 423.0 | |
| 0.00 | 2.04 | 0.00 | 1.15 | 13.73 | 345.07 | 28.37 | 285.70 | 0.4814 | 787.0 | 680.6 | |
| 0.00 | 1.33 | 0.00 | 0.75 | 15.01 | 345.11 | 28.41 | 288.29 | 0.4859 | 509.0 | 513.7 | |
| 0.00 | 1.15 | 0.00 | 0.65 | 16.93 | 344.55 | 27.85 | 292.43 | 0.4855 | 605.0 | 452.5 | |
| 0.00 | 1.15 | 0.00 | 0.64 | 16.06 | 343.18 | 26.48 | 291.43 | 0.4622 | 743.0 | 638.8 | |
| 0.00 | 1.42 | 0.00 | 0.79 | 16.31 | 342.55 | 25.85 | 292.32 | 0.4543 | 639.0 | 571.9 | |
| 0.00 | 0.71 | 0.00 | 0.39 | 16.17 | 341.80 | 25.10 | 292.49 | 0.4428 | 605.0 | 554.8 | |
| 0.00 | 1.15 | 0.00 | 0.63 | 16.18 | 341.60 | 24.90 | 292.65 | 0.4399 | 917.0 | 820.2 | |
| 0.00 | 0.80 | 0.00 | 0.43 | 17.73 | 339.36 | 22.66 | 297.79 | 0.4166 | 674.0 | 547.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
