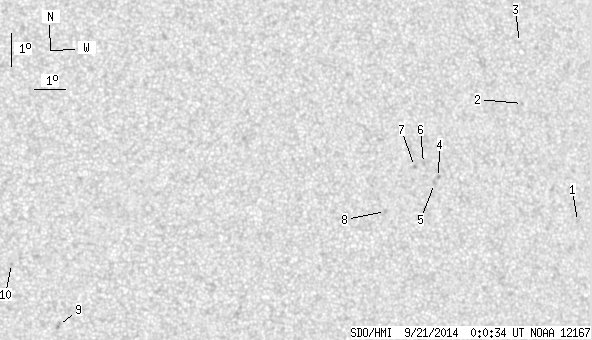

SDO HMI 2014-09-21 00:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 15.22 | 0.00 | 8.12 | 8.55 | 337.74 | 21.04 | 273.95 | 0.3578 | -267.6 | -207.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-21 00:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.33 | 0.00 | 0.74 | 7.44 | 344.47 | 27.77 | 272.47 | 0.4643 | -645.0 | -486.7 | |
| 0.00 | 1.33 | 0.00 | 0.73 | 11.09 | 342.89 | 26.19 | 280.72 | 0.4426 | -752.0 | -517.2 | |
| 0.00 | 1.06 | 0.00 | 0.59 | 12.93 | 342.98 | 26.28 | 284.80 | 0.4482 | 555.0 | 410.4 | |
| 0.00 | 1.15 | 0.00 | 0.62 | 9.01 | 339.89 | 23.19 | 276.33 | 0.3929 | -788.0 | -696.7 | |
| 0.00 | 2.21 | 0.00 | 1.19 | 8.84 | 339.74 | 23.04 | 275.91 | 0.3905 | -602.0 | -498.8 | |
| 0.00 | 1.77 | 0.00 | 0.95 | 9.46 | 339.42 | 22.72 | 277.55 | 0.3860 | -549.0 | -479.5 | |
| 0.00 | 1.15 | 0.00 | 0.62 | 9.38 | 339.12 | 22.42 | 277.41 | 0.3811 | -769.0 | -679.8 | |
| 0.00 | 1.77 | 0.00 | 0.94 | 8.07 | 338.08 | 21.38 | 274.01 | 0.3635 | -726.0 | -558.5 | |
| 0.00 | 2.39 | 0.00 | 1.21 | 5.01 | 327.64 | 10.94 | 259.71 | 0.1931 | 840.0 | 744.6 | |
| 0.00 | 1.06 | 0.00 | 0.53 | 6.91 | 326.24 | 9.54 | 269.39 | 0.1652 | 760.0 | 640.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
