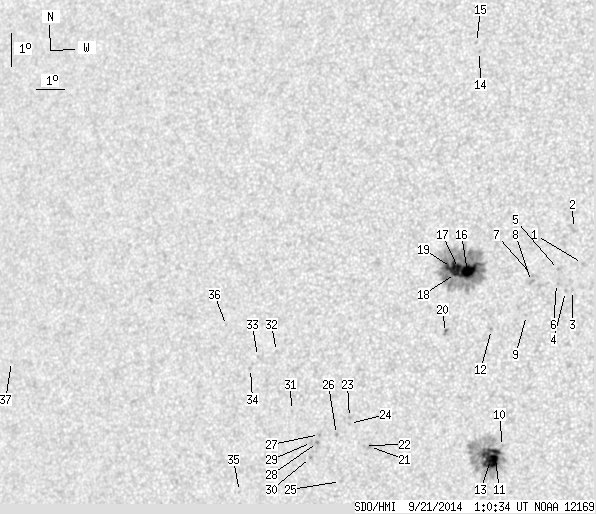

SDO HMI 2014-09-21 01:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 54.31 | 302.31 | 29.84 | 166.85 | 8.78 | 290.07 | -26.09 | 84.55 | 0.4403 | -471.3 | -299.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-21 01:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.71 | 0.00 | 0.38 | 11.22 | 293.91 | -22.24 | 77.71 | 0.3816 | -782.0 | -645.0 | |
| 0.00 | 4.87 | 0.00 | 2.62 | 12.26 | 293.52 | -22.63 | 75.21 | 0.3905 | -199.0 | -296.8 | |
| 0.00 | 1.15 | 0.00 | 0.62 | 10.40 | 293.64 | -22.51 | 79.95 | 0.3840 | -831.0 | -620.8 | |
| 0.00 | 1.33 | 0.00 | 0.71 | 10.35 | 293.41 | -22.74 | 80.12 | 0.3876 | -662.0 | -475.7 | |
| 0.00 | 1.06 | 0.00 | 0.57 | 11.01 | 293.13 | -23.02 | 78.55 | 0.3933 | -774.0 | -655.9 | |
| 0.00 | 0.53 | 0.00 | 0.29 | 10.58 | 293.10 | -23.05 | 79.64 | 0.3930 | -694.0 | -689.2 | |
| 0.00 | 1.06 | 0.00 | 0.58 | 10.78 | 292.28 | -23.87 | 79.37 | 0.4062 | -646.0 | -514.5 | |
| 0.00 | 2.39 | 0.00 | 1.30 | 10.60 | 292.26 | -23.89 | 79.82 | 0.4061 | -807.0 | -628.7 | |
| 0.00 | 0.97 | 0.00 | 0.53 | 9.57 | 292.17 | -23.98 | 82.38 | 0.4060 | -638.0 | -485.3 | |
| 0.00 | 1.42 | 0.00 | 0.77 | 5.59 | 291.61 | -24.54 | 92.11 | 0.4154 | -258.0 | -283.1 | |
| 4.78 | 93.84 | 2.61 | 51.29 | 5.43 | 291.35 | -24.80 | 92.44 | 0.4198 | -1051.5 | -382.3 | |
| 0.00 | 1.15 | 0.00 | 0.63 | 9.09 | 291.03 | -25.12 | 83.70 | 0.4234 | -715.0 | -645.5 | |
| 18.43 | -11.00 | 10.06 | -11.00 | 5.18 | 291.22 | -24.93 | 93.00 | 0.4221 | -1093.7 | 999999 | |
| 0.00 | 1.06 | 0.00 | 0.60 | 17.47 | 289.67 | -26.48 | 65.66 | 0.4687 | -727.0 | -582.7 | |
| 0.00 | 1.06 | 0.00 | 0.60 | 17.74 | 289.52 | -26.63 | 65.22 | 0.4721 | -487.0 | -443.0 | |
| 16.57 | 166.85 | 9.13 | 92.14 | 10.80 | 290.08 | -26.07 | 79.92 | 0.4403 | -1289.0 | -392.6 | |
| 4.25 | -16.00 | 2.35 | -16.00 | 10.87 | 289.77 | -26.39 | 79.82 | 0.4453 | -1048.9 | 999999 | |
| 2.39 | -16.00 | 1.32 | -16.00 | 10.71 | 289.68 | -26.47 | 80.19 | 0.4464 | -1007.3 | 999999 | |
| 7.89 | -16.00 | 4.37 | -16.00 | 10.89 | 289.52 | -26.63 | 79.84 | 0.4490 | -892.8 | 999999 | |
| 0.00 | 3.19 | 0.00 | 1.76 | 8.92 | 289.49 | -26.66 | 84.24 | 0.4474 | 888.0 | 747.9 | |
| 0.00 | 1.68 | 0.00 | 0.95 | 5.35 | 287.11 | -29.04 | 91.79 | 0.4856 | 867.0 | 727.5 | |
| 0.00 | 1.06 | 0.00 | 0.60 | 5.37 | 286.93 | -29.22 | 91.72 | 0.4882 | 672.0 | 531.4 | |
| 0.00 | 1.33 | 0.00 | 0.76 | 6.18 | 286.37 | -29.78 | 89.99 | 0.4959 | 863.0 | 728.2 | |
| 0.00 | 1.15 | 0.00 | 0.66 | 6.00 | 286.38 | -29.77 | 90.35 | 0.4959 | 781.0 | 590.2 | |
| 0.00 | 1.33 | 0.00 | 0.76 | 4.24 | 286.15 | -30.00 | 93.84 | 0.5018 | 825.0 | 576.3 | |
| 0.00 | 1.42 | 0.00 | 0.81 | 5.64 | 285.94 | -30.21 | 91.01 | 0.5028 | 821.0 | 670.9 | |
| 0.00 | 1.24 | 0.00 | 0.71 | 5.60 | 285.35 | -30.80 | 90.99 | 0.5118 | 930.0 | 805.4 | |
| 0.00 | 1.15 | 0.00 | 0.66 | 5.36 | 285.29 | -30.86 | 91.46 | 0.5129 | 995.0 | 896.8 | |
| 0.00 | 1.77 | 0.00 | 1.02 | 5.35 | 285.08 | -31.07 | 91.45 | 0.5161 | 722.0 | 593.0 | |
| 0.00 | 1.24 | 0.00 | 0.72 | 4.89 | 285.07 | -31.08 | 92.32 | 0.5169 | 698.0 | 571.8 | |
| 0.00 | 0.71 | 0.00 | 0.41 | 6.26 | 284.31 | -31.84 | 89.58 | 0.5265 | 567.0 | 475.0 | |
| 0.00 | 0.89 | 0.00 | 0.52 | 8.00 | 283.64 | -32.51 | 86.25 | 0.5355 | 533.0 | 462.5 | |
| 0.00 | 0.62 | 0.00 | 0.37 | 7.81 | 282.97 | -33.18 | 86.60 | 0.5453 | 652.0 | 562.1 | |
| 0.00 | 1.33 | 0.00 | 0.79 | 7.43 | 282.75 | -33.40 | 87.28 | 0.5487 | 439.0 | 363.6 | |
| 0.00 | 0.89 | 0.00 | 0.53 | 3.70 | 282.58 | -33.57 | 94.01 | 0.5553 | 521.0 | 466.6 | |
| 0.00 | 0.80 | 0.00 | 0.48 | 8.66 | 281.75 | -34.40 | 85.03 | 0.5628 | 461.0 | 421.0 | |
| 0.00 | 1.06 | 0.00 | 0.71 | 6.95 | 273.55 | -42.60 | 87.46 | 0.6748 | 523.0 | 417.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
