SDO HMI 2014-09-21 02:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 26.03 | 0.00 | 15.60 | 14.30 | 349.07 | 33.47 | 285.88 | 0.5556 | 37.9 | 21.5 | |
|
previous
or next observation for the same group /

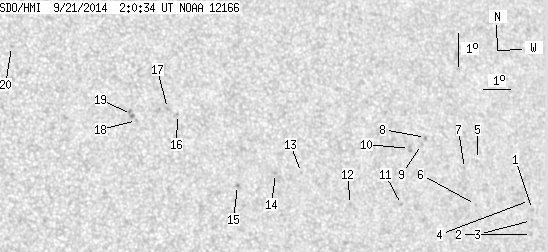

back to the solar disc SDO HMI 2014-09-21 02:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.33 | 0.00 | 0.86 | 12.32 | 355.96 | 40.36 | 280.71 | 0.6462 | -726.0 | -669.9 | |
| 0.00 | 1.42 | 0.00 | 0.92 | 11.57 | 355.79 | 40.19 | 279.56 | 0.6433 | -390.0 | -323.4 | |
| 0.00 | 0.71 | 0.00 | 0.46 | 11.99 | 355.86 | 40.26 | 280.21 | 0.6446 | -699.0 | -626.6 | |
| 0.00 | 1.15 | 0.00 | 0.75 | 12.60 | 355.89 | 40.29 | 281.15 | 0.6456 | -662.0 | -478.5 | |
| 0.00 | 0.53 | 0.00 | 0.34 | 13.99 | 354.08 | 38.48 | 283.59 | 0.6234 | -493.0 | -493.5 | |
| 0.00 | 0.97 | 0.00 | 0.61 | 12.64 | 353.74 | 38.14 | 281.47 | 0.6172 | -690.0 | -626.4 | |
| 0.00 | 0.97 | 0.00 | 0.61 | 13.75 | 353.52 | 37.92 | 283.31 | 0.6156 | -662.0 | -559.3 | |
| 0.00 | 1.06 | 0.00 | 0.66 | 14.80 | 352.20 | 36.60 | 285.29 | 0.5998 | -663.0 | -581.9 | |
| 0.00 | 1.06 | 0.00 | 0.66 | 14.60 | 352.00 | 36.40 | 285.00 | 0.5968 | -355.0 | -421.5 | |
| 0.00 | 3.54 | 0.00 | 2.17 | 14.51 | 351.52 | 35.92 | 284.96 | 0.5901 | -761.0 | -606.4 | |
| 0.00 | 1.24 | 0.00 | 0.75 | 12.85 | 350.92 | 35.32 | 282.24 | 0.5790 | 650.0 | 554.6 | |
| 0.00 | 1.15 | 0.00 | 0.68 | 12.98 | 349.03 | 33.43 | 282.84 | 0.5527 | 728.0 | 593.4 | |
| 0.00 | 0.27 | 0.00 | 0.16 | 14.06 | 347.39 | 31.79 | 285.24 | 0.5318 | 609.0 | 506.0 | |
| 0.00 | 1.15 | 0.00 | 0.67 | 14.09 | 346.45 | 30.85 | 285.58 | 0.5184 | 733.0 | 626.8 | |
| 0.00 | 1.24 | 0.00 | 0.71 | 13.81 | 345.05 | 29.45 | 285.50 | 0.4974 | 788.0 | 686.6 | |
| 0.00 | 0.71 | 0.00 | 0.40 | 16.08 | 343.25 | 27.65 | 290.84 | 0.4790 | 658.0 | 619.9 | |
| 0.00 | 2.13 | 0.00 | 1.20 | 16.29 | 342.93 | 27.33 | 291.42 | 0.4753 | 589.0 | 470.0 | |
| 0.00 | 0.97 | 0.00 | 0.54 | 15.98 | 341.79 | 26.19 | 291.44 | 0.4577 | 708.0 | 586.2 | |
| 0.00 | 3.63 | 0.00 | 2.02 | 16.17 | 341.64 | 26.04 | 291.93 | 0.4565 | 707.0 | 749.9 | |
| 0.00 | 0.80 | 0.00 | 0.43 | 18.45 | 337.82 | 22.21 | 299.82 | 0.4151 | 689.0 | 621.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
