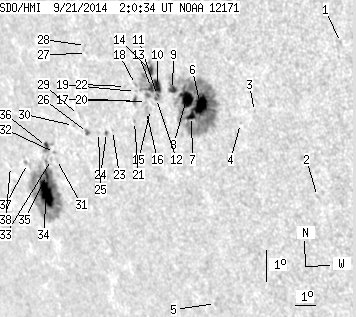

SDO HMI 2014-09-21 02:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 85.07 | 398.52 | 71.79 | 336.52 | -9.90 | 264.16 | -51.44 | 107.75 | 0.8088 | 126.4 | 79.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-21 02:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.51 | 0.00 | 1.02 | -6.14 | 274.32 | -41.28 | 106.84 | 0.6876 | 365.0 | 311.4 | |
| 0.00 | 1.06 | 0.00 | 0.76 | -11.08 | 272.68 | -42.92 | 112.70 | 0.7267 | 156.0 | 231.8 | |
| 0.00 | 0.80 | 0.00 | 0.59 | -8.61 | 270.42 | -45.18 | 108.51 | 0.7419 | 474.0 | 400.1 | |
| 0.00 | 0.71 | 0.00 | 0.53 | -9.05 | 269.73 | -45.87 | 108.78 | 0.7510 | 378.0 | 349.8 | |
| 0.00 | 1.33 | 0.00 | 1.09 | -14.98 | 267.21 | -48.39 | 114.94 | 0.7987 | 526.0 | 384.9 | |
| 16.66 | 190.71 | 12.83 | 147.65 | -8.65 | 268.02 | -47.58 | 107.61 | 0.7680 | 1052.7 | 322.9 | |
| 4.17 | -6.00 | 3.25 | -6.00 | -9.03 | 267.54 | -48.06 | 107.91 | 0.7743 | 432.0 | 999999 | |
| 15.07 | -6.00 | 11.73 | -6.00 | -8.49 | 267.40 | -48.20 | 107.18 | 0.7740 | 734.9 | 999999 | |
| 3.72 | -6.00 | 2.93 | -6.00 | -8.26 | 266.80 | -48.80 | 106.68 | 0.7796 | 618.0 | 999999 | |
| 6.38 | 34.30 | 5.10 | 27.62 | -8.24 | 266.10 | -49.50 | 106.41 | 0.7868 | 772.4 | 133.9 | |
| 0.71 | -10.00 | 0.57 | -10.00 | -8.52 | 266.05 | -49.55 | 106.74 | 0.7881 | 641.6 | 999999 | |
| 0.53 | -10.00 | 0.43 | -10.00 | -8.62 | 265.98 | -49.62 | 106.84 | 0.7891 | 544.7 | 999999 | |
| 3.19 | -10.00 | 2.57 | -10.00 | -8.30 | 265.81 | -49.79 | 106.38 | 0.7900 | 499.4 | 999999 | |
| 3.63 | 9.48 | 2.91 | 7.59 | -7.76 | 265.85 | -49.75 | 105.74 | 0.7880 | 656.3 | 437.2 | |
| 0.00 | 0.89 | 0.00 | 0.72 | -9.00 | 265.63 | -49.97 | 107.17 | 0.7938 | 325.0 | 257.6 | |
| 0.00 | 4.61 | 0.00 | 3.75 | -9.08 | 265.42 | -50.18 | 107.20 | 0.7962 | -217.0 | -165.3 | |
| 0.00 | 1.95 | 0.00 | 1.58 | -8.76 | 265.48 | -50.12 | 106.84 | 0.7946 | -281.0 | -124.0 | |
| 0.00 | 1.15 | 0.00 | 0.94 | -8.28 | 265.05 | -50.56 | 106.10 | 0.7976 | 128.0 | 89.9 | |
| 0.00 | 0.53 | 0.00 | 0.44 | -8.50 | 265.00 | -50.60 | 106.35 | 0.7987 | 258.0 | 212.3 | |
| 1.15 | 3.54 | 0.95 | 2.91 | -8.79 | 264.90 | -50.70 | 106.67 | 0.8005 | 392.5 | 174.7 | |
| 0.00 | 1.06 | 0.00 | 0.88 | -9.46 | 264.77 | -50.83 | 107.43 | 0.8038 | -587.0 | -508.8 | |
| 0.00 | 1.24 | 0.00 | 1.03 | -8.39 | 264.54 | -51.06 | 106.07 | 0.8030 | -239.0 | -216.8 | |
| 0.00 | 0.71 | 0.00 | 0.60 | -9.85 | 263.60 | -52.00 | 107.50 | 0.8163 | 284.0 | 226.9 | |
| 0.71 | 1.95 | 0.61 | 1.68 | -9.95 | 263.28 | -52.33 | 107.50 | 0.8196 | 181.2 | 172.6 | |
| 0.00 | 0.71 | 0.00 | 0.62 | -9.99 | 262.86 | -52.74 | 107.41 | 0.8236 | -324.0 | -299.2 | |
| 0.97 | 2.92 | 0.86 | 2.58 | -10.05 | 262.28 | -53.32 | 107.29 | 0.8292 | -698.5 | -551.5 | |
| 0.00 | 0.62 | 0.00 | 0.53 | -7.54 | 262.76 | -52.84 | 104.49 | 0.8182 | -520.0 | -412.3 | |
| 0.00 | 0.62 | 0.00 | 0.53 | -7.29 | 262.75 | -52.85 | 104.20 | 0.8177 | 37.0 | 128.9 | |
| 0.00 | 1.15 | 0.00 | 1.02 | -9.55 | 261.94 | -53.66 | 106.60 | 0.8311 | -444.0 | -453.9 | |
| 0.00 | 0.71 | 0.00 | 0.63 | -9.90 | 261.59 | -54.01 | 106.90 | 0.8351 | -440.0 | -351.0 | |
| 0.00 | 1.15 | 0.00 | 1.07 | -11.09 | 260.37 | -55.23 | 107.88 | 0.8491 | -588.0 | -477.2 | |
| 0.00 | 1.06 | 0.00 | 0.99 | -10.88 | 260.33 | -55.28 | 107.62 | 0.8490 | -640.0 | -550.1 | |
| 0.00 | 0.89 | 0.00 | 0.83 | -11.12 | 260.09 | -55.51 | 107.83 | 0.8516 | -619.0 | -581.6 | |
| 22.42 | 126.99 | 21.60 | 122.26 | -12.22 | 259.47 | -56.13 | 108.88 | 0.8596 | -748.7 | -186.2 | |
| 2.57 | -34.00 | 2.45 | -34.00 | -11.67 | 259.65 | -55.95 | 108.31 | 0.8567 | -808.6 | 999999 | |
| 3.19 | -34.00 | 3.00 | -34.00 | -10.73 | 259.93 | -55.67 | 107.33 | 0.8520 | -168.4 | 999999 | |
| 0.00 | 3.90 | 0.00 | 3.81 | -11.39 | 258.67 | -56.93 | 107.70 | 0.8643 | -403.0 | -198.8 | |
| 0.00 | 0.27 | 0.00 | 0.27 | -11.60 | 257.63 | -57.97 | 107.62 | 0.8733 | -363.0 | -324.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
