SDO HMI 2014-09-21 03:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 44.57 | 315.34 | 24.29 | 172.59 | 8.28 | 289.99 | -25.06 | 85.66 | 0.4244 | -387.0 | -293.3 | |
|
previous
or next observation for the same group /

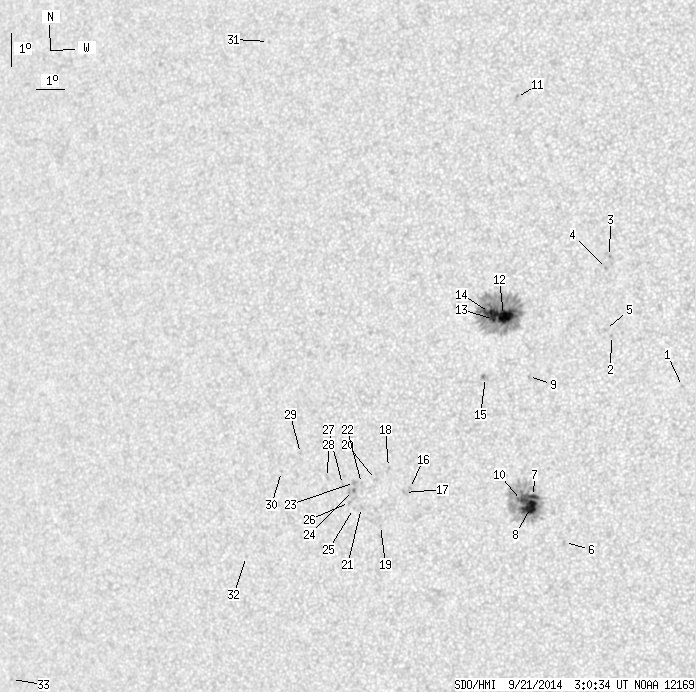

back to the solar disc SDO HMI 2014-09-21 03:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.97 | 0.00 | 0.51 | 8.97 | 296.06 | -18.99 | 83.03 | 0.3252 | -767.0 | -589.6 | |
| 0.00 | 1.15 | 0.00 | 0.61 | 10.41 | 293.66 | -21.39 | 79.55 | 0.3663 | -872.0 | -653.3 | |
| 0.00 | 0.71 | 0.00 | 0.38 | 12.79 | 293.41 | -21.65 | 73.34 | 0.3771 | -951.0 | -815.5 | |
| 0.00 | 1.24 | 0.00 | 0.66 | 12.42 | 293.34 | -21.71 | 74.33 | 0.3769 | -875.0 | -688.4 | |
| 0.00 | 1.24 | 0.00 | 0.66 | 10.58 | 293.45 | -21.60 | 79.16 | 0.3700 | -709.0 | -636.2 | |
| 0.00 | 1.86 | 0.00 | 1.00 | 4.11 | 292.44 | -22.62 | 96.33 | 0.3876 | 721.0 | 613.7 | |
| 3.01 | 115.84 | 1.63 | 62.76 | 5.45 | 291.37 | -23.68 | 92.63 | 0.4020 | -1083.0 | -387.4 | |
| 12.41 | -7.00 | 6.71 | -7.00 | 5.12 | 291.28 | -23.77 | 93.44 | 0.4039 | -1196.2 | 999999 | |
| 0.00 | 0.97 | 0.00 | 0.53 | 9.05 | 291.01 | -24.05 | 83.66 | 0.4066 | -737.0 | -559.5 | |
| 1.06 | -7.00 | 0.58 | -7.00 | 5.31 | 290.98 | -24.07 | 92.89 | 0.4084 | -815.9 | 999999 | |
| 0.00 | 2.22 | 0.00 | 1.23 | 17.46 | 289.69 | -25.36 | 64.91 | 0.4530 | -714.0 | -585.2 | |
| 18.43 | 157.49 | 10.07 | 86.20 | 10.84 | 290.02 | -25.03 | 79.53 | 0.4243 | -1285.8 | -434.3 | |
| 2.22 | -12.00 | 1.21 | -12.00 | 10.71 | 289.70 | -25.35 | 79.94 | 0.4291 | -956.4 | 999999 | |
| 6.91 | -12.00 | 3.79 | -12.00 | 10.91 | 289.54 | -25.51 | 79.50 | 0.4319 | -939.1 | 999999 | |
| 0.00 | 3.55 | 0.00 | 1.94 | 8.95 | 289.57 | -25.48 | 84.06 | 0.4291 | 883.0 | 804.2 | |
| 0.00 | 2.13 | 0.00 | 1.19 | 5.47 | 287.20 | -27.85 | 91.74 | 0.4672 | 897.0 | 685.0 | |
| 0.00 | 2.66 | 0.00 | 1.49 | 5.34 | 287.04 | -28.02 | 91.98 | 0.4699 | 775.0 | 608.4 | |
| 0.00 | 0.89 | 0.00 | 0.50 | 6.06 | 286.45 | -28.60 | 90.37 | 0.4780 | 809.0 | 682.4 | |
| 0.00 | 0.62 | 0.00 | 0.35 | 4.30 | 286.26 | -28.80 | 93.99 | 0.4835 | 736.0 | 608.7 | |
| 0.00 | 1.77 | 0.00 | 1.00 | 5.68 | 286.02 | -29.03 | 91.11 | 0.4850 | 707.0 | 551.0 | |
| 0.00 | 1.42 | 0.00 | 0.81 | 4.81 | 285.58 | -29.47 | 92.81 | 0.4929 | 708.0 | 566.6 | |
| 0.00 | 1.06 | 0.00 | 0.60 | 5.53 | 285.54 | -29.51 | 91.34 | 0.4924 | 762.0 | 664.0 | |
| 0.00 | 2.66 | 0.00 | 1.52 | 5.54 | 285.30 | -29.76 | 91.26 | 0.4961 | 915.0 | 750.4 | |
| 0.53 | 3.37 | 0.30 | 1.92 | 5.30 | 285.27 | -29.78 | 91.75 | 0.4967 | 969.7 | 721.8 | |
| 0.00 | 0.80 | 0.00 | 0.45 | 4.76 | 285.30 | -29.75 | 92.84 | 0.4971 | 589.0 | 541.6 | |
| 0.00 | 1.60 | 0.00 | 0.91 | 4.93 | 285.15 | -29.90 | 92.47 | 0.4991 | 713.0 | 570.8 | |
| 0.00 | 2.39 | 0.00 | 1.37 | 5.46 | 284.88 | -30.17 | 91.37 | 0.5025 | 790.0 | 615.5 | |
| 0.00 | 2.39 | 0.00 | 1.38 | 5.64 | 284.34 | -30.71 | 90.93 | 0.5103 | 524.0 | 344.6 | |
| 0.00 | 1.15 | 0.00 | 0.67 | 6.30 | 283.35 | -31.71 | 89.52 | 0.5245 | 715.0 | 565.1 | |
| 0.00 | 1.06 | 0.00 | 0.62 | 5.71 | 282.70 | -32.35 | 90.55 | 0.5345 | 629.0 | 438.5 | |
| 0.00 | 0.71 | 0.00 | 0.43 | 18.64 | 280.38 | -34.67 | 67.71 | 0.5848 | -554.0 | -487.6 | |
| 0.00 | 0.71 | 0.00 | 0.42 | 3.07 | 281.57 | -33.48 | 95.16 | 0.5553 | 559.0 | 487.0 | |
| 0.00 | 0.71 | 0.00 | 0.48 | -1.34 | 272.60 | -42.45 | 99.61 | 0.6867 | 568.0 | 514.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
