SDO HMI 2014-09-21 03:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 85.98 | 392.00 | 71.44 | 326.84 | -9.93 | 264.18 | -50.87 | 107.97 | 0.8034 | 158.1 | 82.6 | |
|
previous
or next observation for the same group /

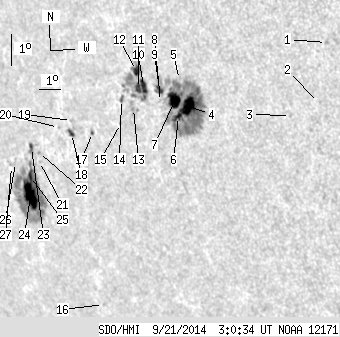

back to the solar disc SDO HMI 2014-09-21 03:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.68 | 0.00 | 1.14 | -6.13 | 274.25 | -40.80 | 107.03 | 0.6818 | 609.0 | 430.6 | |
| 0.00 | 0.35 | 0.00 | 0.24 | -8.03 | 273.72 | -41.33 | 109.42 | 0.6957 | 507.0 | 508.8 | |
| 0.00 | 0.80 | 0.00 | 0.56 | -8.54 | 272.50 | -42.55 | 109.54 | 0.7119 | 374.0 | 320.8 | |
| 17.11 | 165.11 | 13.02 | 126.06 | -8.65 | 268.09 | -46.96 | 107.85 | 0.7614 | 1057.9 | 349.9 | |
| 0.00 | 2.84 | 0.00 | 2.16 | -7.84 | 267.82 | -47.23 | 106.72 | 0.7617 | 225.0 | 211.3 | |
| 3.72 | -4.00 | 2.87 | -4.00 | -9.01 | 267.58 | -47.47 | 108.10 | 0.7680 | 448.8 | 999999 | |
| 14.71 | -4.00 | 11.32 | -4.00 | -8.52 | 267.48 | -47.57 | 107.45 | 0.7674 | 734.1 | 999999 | |
| 0.00 | 1.33 | 0.00 | 1.04 | -8.61 | 266.83 | -48.22 | 107.33 | 0.7746 | -194.0 | -151.5 | |
| 3.72 | 17.64 | 2.90 | 13.67 | -8.24 | 266.85 | -48.21 | 106.87 | 0.7733 | 678.1 | 323.2 | |
| 7.18 | 49.72 | 5.67 | 39.52 | -8.22 | 266.11 | -48.94 | 106.57 | 0.7809 | 799.8 | 189.0 | |
| 3.99 | -10.00 | 3.17 | -10.00 | -8.30 | 265.86 | -49.19 | 106.59 | 0.7837 | 543.6 | 999999 | |
| 4.79 | -10.00 | 3.79 | -10.00 | -7.74 | 265.86 | -49.19 | 105.90 | 0.7821 | 624.8 | 999999 | |
| 0.00 | 7.00 | 0.00 | 5.62 | -8.96 | 265.51 | -49.54 | 107.27 | 0.7893 | -274.0 | -165.4 | |
| 1.06 | 2.66 | 0.86 | 2.16 | -8.73 | 264.98 | -50.07 | 106.81 | 0.7940 | 380.8 | 211.4 | |
| 0.00 | 0.80 | 0.00 | 0.65 | -9.50 | 264.78 | -50.27 | 107.67 | 0.7983 | -487.0 | -509.0 | |
| 0.00 | 0.89 | 0.00 | 0.81 | -15.49 | 262.24 | -52.82 | 113.69 | 0.8406 | 457.0 | 365.7 | |
| 0.71 | 2.13 | 0.60 | 1.80 | -9.92 | 263.33 | -51.72 | 107.67 | 0.8138 | 189.9 | 15.8 | |
| 2.66 | 5.49 | 2.32 | 4.78 | -10.06 | 262.24 | -52.81 | 107.47 | 0.8245 | -593.3 | -475.8 | |
| 0.00 | 1.24 | 0.00 | 1.07 | -9.64 | 262.34 | -52.72 | 107.01 | 0.8225 | -721.0 | -504.1 | |
| 0.00 | 0.89 | 0.00 | 0.78 | -9.94 | 261.60 | -53.45 | 107.12 | 0.8301 | -480.0 | -350.6 | |
| 0.00 | 0.80 | 0.00 | 0.73 | -11.14 | 260.29 | -54.76 | 108.08 | 0.8451 | -640.0 | -571.1 | |
| 0.00 | 1.06 | 0.00 | 0.98 | -10.85 | 260.31 | -54.74 | 107.76 | 0.8441 | -560.0 | -514.2 | |
| 2.22 | 6.12 | 2.05 | 5.66 | -10.73 | 259.97 | -55.08 | 107.52 | 0.8469 | -53.6 | -250.6 | |
| 21.63 | 120.71 | 20.54 | 114.78 | -12.30 | 259.45 | -55.60 | 109.12 | 0.8554 | -759.8 | -195.7 | |
| 2.48 | -24.00 | 2.33 | -24.00 | -11.68 | 259.64 | -55.41 | 108.49 | 0.8521 | -776.2 | 999999 | |
| 0.00 | 2.30 | 0.00 | 2.20 | -11.31 | 258.93 | -56.12 | 107.85 | 0.8573 | -387.0 | -231.1 | |
| 0.00 | 0.44 | 0.00 | 0.43 | -11.46 | 258.66 | -56.39 | 107.94 | 0.8600 | -428.0 | -362.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
