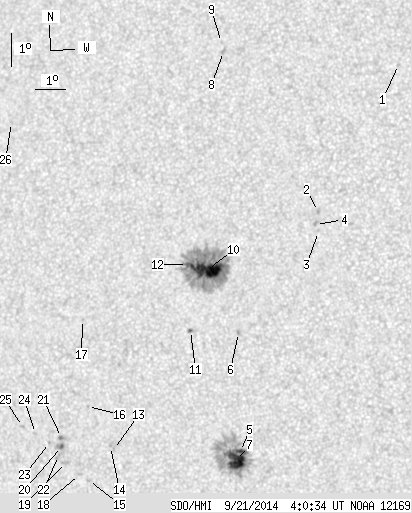

SDO HMI 2014-09-21 04:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 59.38 | 301.95 | 32.24 | 164.54 | 8.69 | 290.01 | -24.49 | 84.64 | 0.4160 | -573.4 | -285.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-21 04:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.15 | 0.00 | 0.61 | 17.35 | 295.67 | -18.83 | 59.12 | 0.3606 | -715.0 | -608.5 | |
| 0.00 | 1.77 | 0.00 | 0.94 | 12.78 | 293.45 | -21.05 | 72.99 | 0.3679 | -975.0 | -785.4 | |
| 0.00 | 0.44 | 0.00 | 0.24 | 12.18 | 293.50 | -21.00 | 74.58 | 0.3649 | -451.0 | -474.4 | |
| 0.00 | 1.33 | 0.00 | 0.71 | 12.38 | 293.39 | -21.11 | 74.09 | 0.3675 | -810.0 | -721.9 | |
| 4.43 | 99.71 | 2.39 | 53.81 | 5.44 | 291.35 | -23.15 | 92.77 | 0.3936 | -1046.4 | -361.7 | |
| 0.00 | 1.95 | 0.00 | 1.05 | 9.02 | 291.09 | -23.41 | 83.66 | 0.3965 | -861.0 | -678.4 | |
| 19.15 | -5.00 | 10.32 | -5.00 | 5.16 | 291.23 | -23.27 | 93.44 | 0.3959 | -1083.3 | 999999 | |
| 0.00 | 2.57 | 0.00 | 1.42 | 17.49 | 289.70 | -24.81 | 64.45 | 0.4454 | -784.0 | -643.8 | |
| 0.00 | 1.06 | 0.00 | 0.59 | 17.76 | 289.59 | -24.91 | 63.96 | 0.4484 | -604.0 | -443.6 | |
| 32.44 | 166.01 | 17.67 | 90.48 | 10.86 | 289.91 | -24.59 | 79.37 | 0.4176 | -1175.6 | -381.7 | |
| 0.53 | 1.68 | 0.29 | 0.92 | 9.00 | 289.49 | -25.01 | 83.89 | 0.4218 | 893.5 | 760.5 | |
| 1.68 | -10.00 | 0.92 | -10.00 | 10.98 | 289.23 | -25.28 | 79.28 | 0.4284 | -708.5 | 999999 | |
| 0.00 | 0.97 | 0.00 | 0.54 | 5.28 | 287.10 | -27.40 | 92.22 | 0.4605 | 679.0 | 568.0 | |
| 0.00 | 0.62 | 0.00 | 0.35 | 5.37 | 287.00 | -27.50 | 92.02 | 0.4620 | 765.0 | 657.7 | |
| 0.00 | 1.77 | 0.00 | 1.00 | 4.30 | 286.29 | -28.21 | 94.13 | 0.4746 | 754.0 | 553.7 | |
| 0.00 | 1.06 | 0.00 | 0.60 | 6.53 | 286.15 | -28.36 | 89.42 | 0.4738 | 687.0 | 520.8 | |
| 0.00 | 0.89 | 0.00 | 0.50 | 9.13 | 285.78 | -28.72 | 83.92 | 0.4791 | 619.0 | 467.8 | |
| 0.00 | 1.42 | 0.00 | 0.80 | 4.47 | 285.98 | -28.53 | 93.72 | 0.4791 | 770.0 | 537.4 | |
| 0.00 | 3.28 | 0.00 | 1.86 | 4.80 | 285.48 | -29.02 | 92.91 | 0.4861 | 699.0 | 609.5 | |
| 1.15 | 4.25 | 0.65 | 2.41 | 5.27 | 285.32 | -29.19 | 91.91 | 0.4878 | 1024.0 | 770.7 | |
| 0.00 | 3.10 | 0.00 | 1.76 | 5.54 | 285.30 | -29.20 | 91.35 | 0.4877 | 930.0 | 789.6 | |
| 0.00 | 2.66 | 0.00 | 1.51 | 4.99 | 285.23 | -29.28 | 92.46 | 0.4896 | 717.0 | 661.5 | |
| 0.00 | 0.80 | 0.00 | 0.45 | 5.37 | 284.90 | -29.61 | 91.64 | 0.4941 | 710.0 | 628.1 | |
| 0.00 | 1.33 | 0.00 | 0.76 | 5.61 | 284.39 | -30.11 | 91.07 | 0.5014 | 652.0 | 526.3 | |
| 0.00 | 1.24 | 0.00 | 0.71 | 5.79 | 283.93 | -30.58 | 90.64 | 0.5082 | 710.0 | 579.2 | |
| 0.00 | 0.89 | 0.00 | 0.52 | 14.91 | 282.53 | -31.98 | 73.24 | 0.5365 | -730.0 | -539.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
