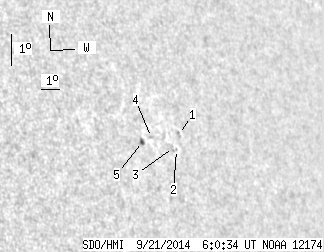

SDO HMI 2014-09-21 06:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.06 | 6.73 | 0.91 | 5.91 | 15.82 | 9.66 | 56.26 | 284.35 | 0.8279 | -250.2 | -197.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-21 06:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.30 | 0.00 | 2.08 | 15.86 | 10.69 | 57.28 | 284.35 | 0.8375 | -488.0 | -353.2 | |
| 0.00 | 0.27 | 0.00 | 0.24 | 15.42 | 10.39 | 56.98 | 283.84 | 0.8346 | -316.0 | -333.3 | |
| 0.00 | 0.53 | 0.00 | 0.47 | 15.50 | 10.24 | 56.84 | 283.94 | 0.8333 | -542.0 | -538.8 | |
| 0.00 | 1.33 | 0.00 | 1.15 | 15.92 | 9.17 | 55.77 | 284.49 | 0.8233 | -364.0 | -320.3 | |
| 1.06 | 2.30 | 0.91 | 1.97 | 15.85 | 8.64 | 55.24 | 284.43 | 0.8182 | 529.0 | 422.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
