SDO HMI 2014-09-21 06:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.89 | 12.94 | 0.69 | 10.15 | 14.76 | 262.19 | -51.21 | 76.68 | 0.7766 | -21.4 | -73.1 | |
|
previous
or next observation for the same group /

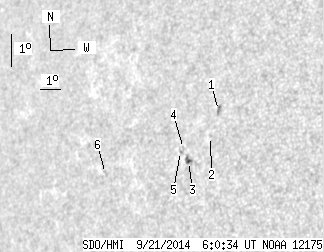

back to the solar disc SDO HMI 2014-09-21 06:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 3.01 | 0.00 | 2.30 | 16.05 | 263.64 | -49.76 | 74.91 | 0.7621 | 544.0 | 464.6 | |
| 0.00 | 0.80 | 0.00 | 0.61 | 15.24 | 263.52 | -49.89 | 75.99 | 0.7628 | 461.0 | 336.7 | |
| 0.89 | 4.25 | 0.69 | 3.30 | 14.39 | 262.71 | -50.69 | 77.15 | 0.7710 | -723.2 | -565.9 | |
| 0.00 | 1.33 | 0.00 | 1.04 | 14.76 | 262.35 | -51.06 | 76.70 | 0.7751 | -502.0 | -439.7 | |
| 0.00 | 1.51 | 0.00 | 1.18 | 14.65 | 262.23 | -51.18 | 76.84 | 0.7763 | -539.0 | -426.1 | |
| 0.00 | 2.04 | 0.00 | 1.72 | 13.64 | 258.68 | -54.73 | 78.27 | 0.8125 | 413.0 | 274.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
