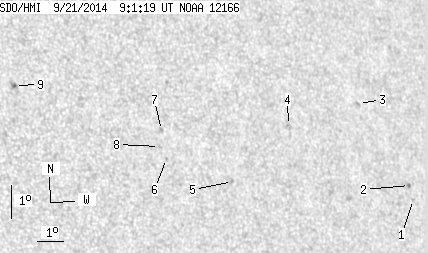

SDO HMI 2014-09-21 09:01:19 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.35 | 11.52 | 0.20 | 7.24 | 14.07 | 349.45 | 37.69 | 284.33 | 0.6120 | 81.5 | 58.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-21 09:01:19 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.71 | 0.00 | 0.49 | 11.73 | 356.45 | 44.70 | 279.57 | 0.7007 | -711.0 | -589.8 | |
| 0.00 | 1.51 | 0.00 | 1.04 | 12.16 | 356.37 | 44.61 | 280.19 | 0.6999 | -836.0 | -763.5 | |
| 0.00 | 1.15 | 0.00 | 0.78 | 14.81 | 354.79 | 43.03 | 284.17 | 0.6828 | -654.0 | -519.8 | |
| 0.00 | 1.06 | 0.00 | 0.69 | 14.38 | 351.77 | 40.01 | 283.98 | 0.6441 | -707.0 | -613.9 | |
| 0.00 | 1.77 | 0.00 | 1.10 | 12.86 | 349.24 | 37.48 | 281.95 | 0.6087 | 666.0 | 534.9 | |
| 0.00 | 0.80 | 0.00 | 0.48 | 13.73 | 346.85 | 35.10 | 283.85 | 0.5774 | 613.0 | 504.3 | |
| 0.00 | 1.33 | 0.00 | 0.81 | 14.59 | 346.82 | 35.06 | 285.34 | 0.5786 | 603.0 | 427.3 | |
| 0.00 | 0.53 | 0.00 | 0.32 | 14.11 | 346.66 | 34.90 | 284.55 | 0.5754 | 721.0 | 611.5 | |
| 0.35 | 2.66 | 0.20 | 1.53 | 16.30 | 341.67 | 29.91 | 290.21 | 0.5120 | 879.2 | 713.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
