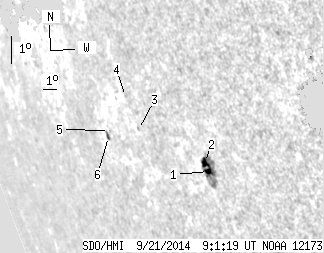

SDO HMI 2014-09-21 09:01:19 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 8.42 | 37.05 | 9.61 | 42.10 | -15.14 | 250.95 | -60.81 | 110.65 | 0.9017 | 208.4 | 230.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-21 09:01:19 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.66 | 31.29 | 2.92 | 34.27 | -15.41 | 252.13 | -59.63 | 111.27 | 0.8944 | 532.6 | 349.6 | |
| 4.61 | -1.00 | 5.07 | -1.00 | -15.13 | 252.01 | -59.75 | 110.93 | 0.8947 | 531.5 | 999999 | |
| 0.00 | 0.97 | 0.00 | 1.23 | -14.54 | 247.92 | -63.84 | 109.15 | 0.9214 | -332.0 | -276.8 | |
| 0.00 | 0.89 | 0.00 | 1.12 | -13.53 | 247.51 | -64.25 | 107.98 | 0.9223 | -226.0 | -225.3 | |
| 0.00 | 0.62 | 0.00 | 0.86 | -14.84 | 245.59 | -66.17 | 108.87 | 0.9360 | -478.0 | -376.1 | |
| 1.15 | 3.28 | 1.62 | 4.62 | -15.05 | 245.37 | -66.38 | 109.04 | 0.9375 | -361.5 | -263.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
