SDO HMI 2014-09-21 10:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 10.03 | 0.00 | 5.69 | -12.16 | 290.28 | -20.94 | 133.62 | 0.4770 | 694.9 | 599.2 | |
|
previous
or next observation for the same group /

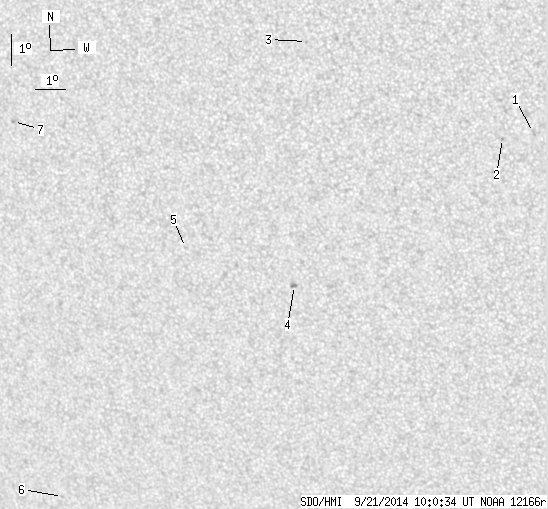

back to the solar disc SDO HMI 2014-09-21 10:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.13 | 0.00 | 1.12 | -9.05 | 299.01 | -12.21 | 142.78 | 0.3468 | 771.0 | 597.2 | |
| 0.00 | 0.89 | 0.00 | 0.47 | -9.27 | 298.03 | -13.19 | 141.00 | 0.3594 | 750.0 | 628.8 | |
| 0.00 | 0.89 | 0.00 | 0.48 | -6.46 | 291.94 | -19.28 | 124.68 | 0.4007 | 639.0 | 488.1 | |
| 0.00 | 2.57 | 0.00 | 1.46 | -14.19 | 291.03 | -20.19 | 136.71 | 0.4900 | 866.0 | 716.7 | |
| 0.00 | 0.89 | 0.00 | 0.51 | -13.14 | 287.49 | -23.73 | 130.55 | 0.5178 | 490.0 | 479.3 | |
| 0.00 | 1.06 | 0.00 | 0.70 | -21.68 | 281.76 | -29.45 | 135.58 | 0.6551 | 576.0 | 489.9 | |
| 0.00 | 1.60 | 0.00 | 0.95 | -9.46 | 281.95 | -29.27 | 119.15 | 0.5544 | 772.0 | 607.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
