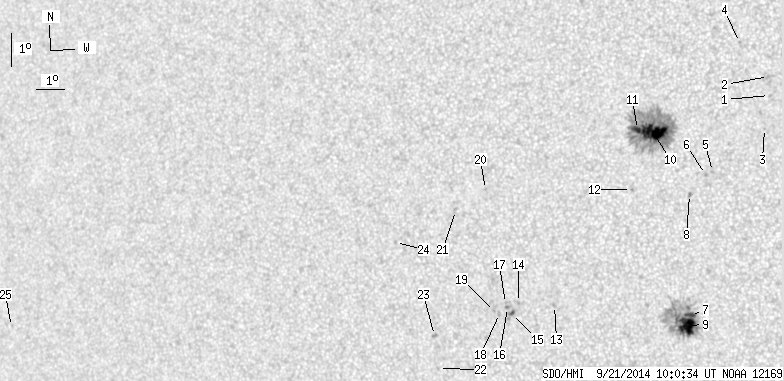

SDO HMI 2014-09-21 10:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 53.88 | 276.55 | 28.56 | 147.29 | 8.72 | 289.90 | -21.32 | 84.14 | 0.3654 | -576.1 | -330.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-21 10:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.06 | 0.00 | 0.55 | 12.14 | 293.62 | -17.60 | 72.37 | 0.3115 | -853.0 | -733.9 | |
| 0.00 | 1.42 | 0.00 | 0.74 | 12.71 | 293.55 | -17.67 | 70.66 | 0.3152 | -816.0 | -721.4 | |
| 0.00 | 0.71 | 0.00 | 0.37 | 11.13 | 293.52 | -17.70 | 75.59 | 0.3093 | -791.0 | -621.0 | |
| 0.00 | 0.97 | 0.00 | 0.51 | 13.70 | 292.53 | -18.69 | 68.63 | 0.3358 | -753.0 | -587.9 | |
| 0.00 | 1.33 | 0.00 | 0.70 | 9.78 | 291.92 | -19.29 | 80.57 | 0.3315 | -910.0 | -631.5 | |
| 0.00 | 1.42 | 0.00 | 0.74 | 9.68 | 291.70 | -19.51 | 80.94 | 0.3349 | -826.0 | -672.2 | |
| 3.19 | 83.92 | 1.68 | 44.25 | 5.42 | 291.41 | -19.80 | 93.66 | 0.3394 | -1066.3 | -448.7 | |
| 0.00 | 1.68 | 0.00 | 0.89 | 9.06 | 291.22 | -20.00 | 82.91 | 0.3418 | -873.0 | -738.4 | |
| 19.41 | -7.00 | 10.22 | -7.00 | 5.11 | 291.33 | -19.89 | 94.53 | 0.3414 | -1117.5 | 999999 | |
| 26.23 | 161.20 | 13.95 | 85.80 | 10.87 | 289.93 | -21.29 | 78.19 | 0.3659 | -1167.0 | -415.5 | |
| 3.99 | -10.00 | 2.13 | -10.00 | 10.94 | 289.39 | -21.82 | 78.21 | 0.3745 | -862.8 | 999999 | |
| 0.00 | 1.06 | 0.00 | 0.57 | 9.13 | 289.32 | -21.90 | 83.09 | 0.3725 | 873.0 | 699.8 | |
| 0.00 | 1.95 | 0.00 | 1.06 | 5.52 | 286.97 | -24.25 | 92.28 | 0.4108 | 793.0 | 600.3 | |
| 0.00 | 1.24 | 0.00 | 0.68 | 5.55 | 285.77 | -25.45 | 91.96 | 0.4297 | 768.0 | 623.5 | |
| 1.06 | 3.90 | 0.58 | 2.14 | 5.21 | 285.58 | -25.64 | 92.71 | 0.4331 | 1002.3 | 800.8 | |
| 0.00 | 1.77 | 0.00 | 0.97 | 5.38 | 285.41 | -25.81 | 92.28 | 0.4356 | 992.0 | 823.1 | |
| 0.00 | 0.97 | 0.00 | 0.54 | 5.50 | 285.33 | -25.88 | 92.00 | 0.4366 | 612.0 | 614.8 | |
| 0.00 | 2.39 | 0.00 | 1.32 | 5.19 | 285.15 | -26.07 | 92.67 | 0.4400 | 603.0 | 550.2 | |
| 0.00 | 1.06 | 0.00 | 0.59 | 5.24 | 284.98 | -26.24 | 92.52 | 0.4426 | 701.0 | 595.0 | |
| 0.00 | 0.80 | 0.00 | 0.44 | 8.89 | 284.45 | -26.77 | 84.26 | 0.4491 | 780.0 | 634.0 | |
| 0.00 | 2.30 | 0.00 | 1.29 | 8.20 | 283.47 | -27.74 | 85.81 | 0.4639 | 638.0 | 556.2 | |
| 0.00 | 1.15 | 0.00 | 0.65 | 3.42 | 283.14 | -28.08 | 95.99 | 0.4743 | 555.0 | 474.4 | |
| 0.00 | 2.39 | 0.00 | 1.35 | 4.40 | 282.97 | -28.25 | 93.87 | 0.4749 | 719.0 | 612.7 | |
| 0.00 | 1.24 | 0.00 | 0.71 | 7.12 | 281.47 | -29.75 | 88.03 | 0.4946 | 72.0 | 112.9 | |
| 0.00 | 0.62 | 0.00 | 0.43 | 3.54 | 267.11 | -44.11 | 92.22 | 0.6975 | 489.0 | 351.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
