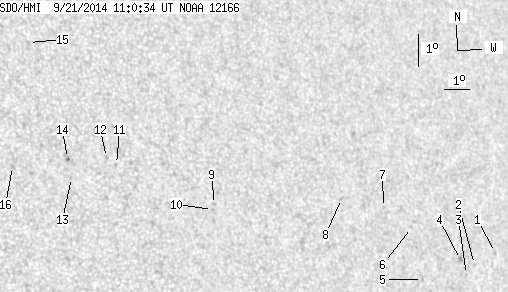

SDO HMI 2014-09-21 11:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 18.86 | 0.00 | 12.08 | 14.27 | 349.54 | 38.87 | 284.76 | 0.6278 | 52.3 | -9.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-21 11:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.15 | 0.00 | 0.83 | 12.19 | 357.99 | 47.33 | 280.10 | 0.7323 | -416.0 | -330.5 | |
| 0.00 | 0.97 | 0.00 | 0.69 | 11.91 | 356.98 | 46.31 | 279.76 | 0.7203 | -443.0 | -412.4 | |
| 0.00 | 0.71 | 0.00 | 0.50 | 11.65 | 356.57 | 45.90 | 279.40 | 0.7152 | -644.0 | -583.0 | |
| 0.00 | 2.22 | 0.00 | 1.56 | 12.12 | 356.40 | 45.73 | 280.07 | 0.7134 | -736.0 | -651.6 | |
| 0.00 | 1.15 | 0.00 | 0.79 | 11.66 | 354.65 | 43.98 | 279.50 | 0.6919 | -670.0 | -551.8 | |
| 0.00 | 1.15 | 0.00 | 0.79 | 13.26 | 354.52 | 43.85 | 281.83 | 0.6913 | -441.0 | -348.1 | |
| 0.00 | 0.62 | 0.00 | 0.42 | 13.95 | 353.49 | 42.82 | 282.95 | 0.6791 | -494.0 | -516.1 | |
| 0.00 | 1.24 | 0.00 | 0.81 | 14.37 | 351.82 | 41.15 | 283.79 | 0.6587 | -700.0 | -546.1 | |
| 0.00 | 1.68 | 0.00 | 1.03 | 14.56 | 346.79 | 36.12 | 285.05 | 0.5930 | 585.0 | 454.7 | |
| 0.00 | 0.89 | 0.00 | 0.54 | 14.42 | 346.69 | 36.02 | 284.83 | 0.5913 | 673.0 | 580.0 | |
| 0.00 | 1.15 | 0.00 | 0.68 | 16.02 | 343.35 | 32.68 | 288.58 | 0.5497 | 630.0 | 492.5 | |
| 0.00 | 1.06 | 0.00 | 0.63 | 16.26 | 343.02 | 32.35 | 289.12 | 0.5459 | 585.0 | 498.0 | |
| 0.00 | 0.53 | 0.00 | 0.31 | 15.74 | 341.64 | 30.97 | 288.70 | 0.5250 | 749.0 | 659.8 | |
| 0.00 | 1.06 | 0.00 | 0.62 | 16.32 | 341.59 | 30.93 | 289.80 | 0.5263 | 760.0 | 747.7 | |
| 0.00 | 1.24 | 0.00 | 0.72 | 19.95 | 340.87 | 30.20 | 296.78 | 0.5317 | 622.0 | 527.4 | |
| 0.00 | 2.04 | 0.00 | 1.16 | 16.20 | 339.58 | 28.91 | 290.48 | 0.4976 | 777.0 | 553.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
