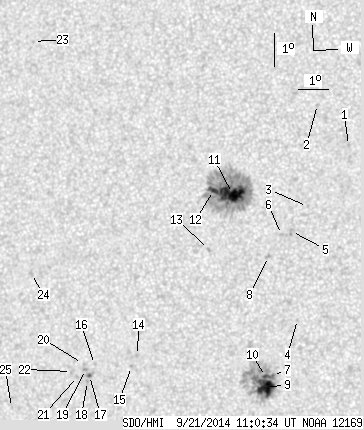

SDO HMI 2014-09-21 11:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 57.07 | 283.00 | 30.15 | 149.92 | 8.85 | 290.11 | -20.56 | 83.76 | 0.3533 | -586.0 | -335.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-21 11:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.24 | 0.00 | 0.64 | 12.48 | 293.63 | -17.04 | 70.79 | 0.3043 | -823.0 | -658.6 | |
| 0.00 | 1.24 | 0.00 | 0.65 | 13.69 | 292.54 | -18.13 | 68.15 | 0.3272 | -751.0 | -491.0 | |
| 0.00 | 1.06 | 0.00 | 0.55 | 10.60 | 292.43 | -18.24 | 77.60 | 0.3164 | -740.0 | -463.9 | |
| 0.00 | 0.97 | 0.00 | 0.51 | 7.19 | 292.28 | -18.39 | 88.48 | 0.3145 | -832.0 | -669.5 | |
| 0.00 | 3.10 | 0.00 | 1.62 | 9.83 | 291.96 | -18.71 | 80.21 | 0.3222 | -689.0 | -647.7 | |
| 0.00 | 1.33 | 0.00 | 0.70 | 9.72 | 291.64 | -19.03 | 80.64 | 0.3271 | -779.0 | -595.1 | |
| 0.27 | 86.12 | 0.14 | 45.26 | 5.47 | 291.54 | -19.13 | 93.70 | 0.3283 | -939.0 | -467.9 | |
| 0.00 | 2.22 | 0.00 | 1.16 | 9.05 | 291.26 | -19.41 | 82.80 | 0.3323 | -895.0 | -654.0 | |
| 19.85 | -7.00 | 10.42 | -7.00 | 5.10 | 291.33 | -19.34 | 94.74 | 0.3324 | -1078.3 | 999999 | |
| 1.68 | -7.00 | 0.88 | -7.00 | 5.43 | 291.32 | -19.35 | 93.75 | 0.3320 | -1009.3 | 999999 | |
| 29.86 | 167.38 | 15.82 | 88.78 | 10.89 | 289.97 | -20.70 | 77.88 | 0.3565 | -1140.3 | -371.8 | |
| 4.70 | -11.00 | 2.50 | -11.00 | 10.96 | 289.34 | -21.33 | 77.96 | 0.3667 | -820.7 | 999999 | |
| 0.00 | 1.68 | 0.00 | 0.89 | 9.18 | 289.30 | -21.37 | 82.85 | 0.3641 | 838.0 | 668.9 | |
| 0.00 | 1.59 | 0.00 | 0.86 | 5.88 | 287.14 | -23.53 | 91.51 | 0.3990 | 767.0 | 600.8 | |
| 0.00 | 1.15 | 0.00 | 0.62 | 5.54 | 286.96 | -23.71 | 92.33 | 0.4023 | 754.0 | 604.2 | |
| 0.00 | 1.06 | 0.00 | 0.58 | 5.54 | 285.73 | -24.94 | 92.07 | 0.4218 | 709.0 | 593.5 | |
| 0.71 | 1.68 | 0.39 | 0.92 | 5.20 | 285.57 | -25.10 | 92.84 | 0.4247 | 953.1 | 842.5 | |
| 0.00 | 1.33 | 0.00 | 0.73 | 5.02 | 285.51 | -25.15 | 93.26 | 0.4259 | 825.0 | 691.2 | |
| 0.00 | 1.42 | 0.00 | 0.78 | 5.38 | 285.43 | -25.24 | 92.40 | 0.4266 | 966.0 | 828.6 | |
| 0.00 | 0.53 | 0.00 | 0.29 | 5.55 | 285.32 | -25.34 | 91.97 | 0.4281 | 606.0 | 573.7 | |
| 0.00 | 1.42 | 0.00 | 0.78 | 5.15 | 285.17 | -25.49 | 92.87 | 0.4310 | 683.0 | 600.1 | |
| 0.00 | 2.13 | 0.00 | 1.17 | 5.29 | 284.97 | -25.70 | 92.50 | 0.4341 | 736.0 | 565.5 | |
| 0.00 | 0.80 | 0.00 | 0.45 | 15.16 | 282.77 | -27.90 | 71.11 | 0.4793 | -770.0 | -584.2 | |
| 0.00 | 2.84 | 0.00 | 1.58 | 8.17 | 283.45 | -27.22 | 85.87 | 0.4559 | 714.0 | 452.1 | |
| 0.00 | 0.71 | 0.00 | 0.40 | 4.10 | 282.98 | -27.69 | 94.65 | 0.4669 | 666.0 | 472.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
