SDO HMI 2014-09-21 11:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 84.80 | 475.19 | 155.28 | 874.10 | -11.18 | 238.17 | -72.50 | 103.76 | 0.9626 | -41.2 | -141.4 | |
|
previous
or next observation for the same group /

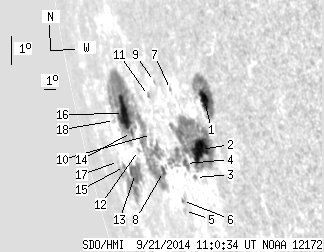

back to the solar disc SDO HMI 2014-09-21 11:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 11.70 | 51.75 | 15.86 | 70.01 | -9.41 | 243.89 | -66.78 | 103.04 | 0.9323 | 505.7 | 252.9 | |
| 25.34 | 153.73 | 36.65 | 229.30 | -11.09 | 242.82 | -67.85 | 104.58 | 0.9406 | 469.8 | 0.6 | |
| 0.53 | 1.68 | 0.81 | 2.57 | -12.08 | 241.88 | -68.79 | 105.40 | 0.9470 | 359.0 | 284.9 | |
| 3.10 | -2.00 | 4.85 | -2.00 | -11.72 | 241.21 | -69.46 | 104.89 | 0.9502 | 54.2 | 999999 | |
| 0.00 | 1.95 | 0.00 | 3.29 | -13.33 | 240.11 | -70.56 | 106.32 | 0.9574 | 24.0 | 49.1 | |
| 0.35 | 1.24 | 0.59 | 2.09 | -13.01 | 240.14 | -70.53 | 105.99 | 0.9569 | 289.5 | 217.5 | |
| 0.00 | 0.97 | 0.00 | 1.51 | -9.43 | 241.05 | -69.62 | 102.49 | 0.9486 | 75.0 | 73.2 | |
| 2.66 | 205.21 | 4.77 | 426.53 | -12.25 | 238.80 | -71.87 | 104.95 | 0.9625 | 60.2 | -245.1 | |
| 0.00 | 1.06 | 0.00 | 1.77 | -9.35 | 239.61 | -71.06 | 102.13 | 0.9559 | -185.0 | -278.6 | |
| 0.00 | 1.68 | 0.00 | 3.08 | -11.15 | 238.30 | -72.37 | 103.74 | 0.9637 | -300.0 | -337.8 | |
| 0.00 | 1.51 | 0.00 | 2.65 | -9.89 | 238.75 | -71.92 | 102.52 | 0.9606 | -398.0 | -384.9 | |
| 0.00 | 1.51 | 0.00 | 3.13 | -11.89 | 236.37 | -74.30 | 104.12 | 0.9724 | -291.0 | -213.9 | |
| 15.51 | 50.59 | 35.21 | 122.24 | -12.74 | 235.31 | -75.36 | 104.79 | 0.9770 | -538.6 | -300.8 | |
| 2.13 | -8.00 | 4.52 | -8.00 | -11.38 | 235.94 | -74.73 | 103.53 | 0.9737 | -587.4 | 999999 | |
| 0.89 | -13.00 | 2.26 | -13.00 | -12.69 | 233.92 | -76.75 | 104.49 | 0.9817 | -73.9 | 999999 | |
| 22.59 | -8.00 | 49.76 | -8.00 | -10.85 | 235.37 | -75.30 | 102.90 | 0.9756 | -219.3 | 999999 | |
| 0.00 | 0.80 | 0.00 | 2.16 | -12.63 | 233.13 | -77.54 | 104.30 | 0.9841 | 392.0 | 377.6 | |
| 0.00 | 1.51 | 0.00 | 3.77 | -11.25 | 233.88 | -76.79 | 103.04 | 0.9810 | 400.0 | 382.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
