SDO HMI 2014-09-21 12:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 5.48 | 0.00 | 2.90 | 10.63 | 328.73 | 18.61 | 285.54 | 0.3354 | 307.3 | 356.6 | |
|
previous
or next observation for the same group /

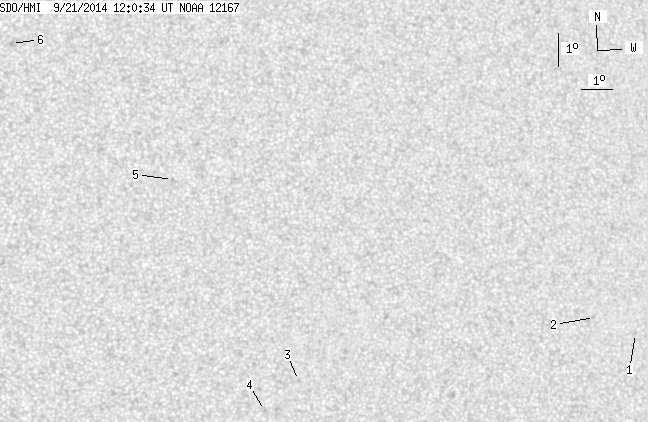

back to the solar disc SDO HMI 2014-09-21 12:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.80 | 0.00 | 0.45 | 8.18 | 340.02 | 29.90 | 274.13 | 0.4967 | -650.0 | -533.8 | |
| 0.00 | 0.44 | 0.00 | 0.25 | 8.75 | 338.64 | 28.52 | 275.34 | 0.4759 | -706.0 | -618.8 | |
| 0.00 | 1.06 | 0.00 | 0.56 | 7.34 | 328.71 | 18.59 | 272.02 | 0.3178 | 750.0 | 651.6 | |
| 0.00 | 1.06 | 0.00 | 0.55 | 6.48 | 327.59 | 17.47 | 269.12 | 0.2997 | 743.0 | 584.4 | |
| 0.00 | 0.97 | 0.00 | 0.50 | 13.54 | 325.03 | 14.91 | 295.03 | 0.2773 | 785.0 | 694.4 | |
| 0.00 | 1.15 | 0.00 | 0.59 | 17.82 | 320.14 | 10.02 | 318.66 | 0.2520 | 922.0 | 676.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
