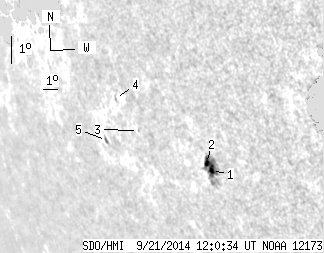

SDO HMI 2014-09-21 12:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.60 | 33.84 | 4.82 | 36.40 | -15.16 | 251.02 | -59.10 | 111.18 | 0.8894 | 159.7 | 230.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-21 12:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.21 | 29.23 | 2.31 | 30.51 | -15.37 | 252.10 | -58.02 | 111.73 | 0.8823 | 600.5 | 354.0 | |
| 2.39 | -1.00 | 2.51 | -1.00 | -15.17 | 251.89 | -58.23 | 111.44 | 0.8834 | 410.2 | 999999 | |
| 0.00 | 0.27 | 0.00 | 0.32 | -14.56 | 247.88 | -62.24 | 109.59 | 0.9109 | -359.0 | -352.7 | |
| 0.00 | 1.77 | 0.00 | 2.18 | -13.67 | 246.75 | -63.37 | 108.34 | 0.9169 | -477.0 | -412.8 | |
| 0.00 | 2.57 | 0.00 | 3.39 | -15.17 | 245.29 | -64.83 | 109.55 | 0.9286 | -332.0 | -239.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
