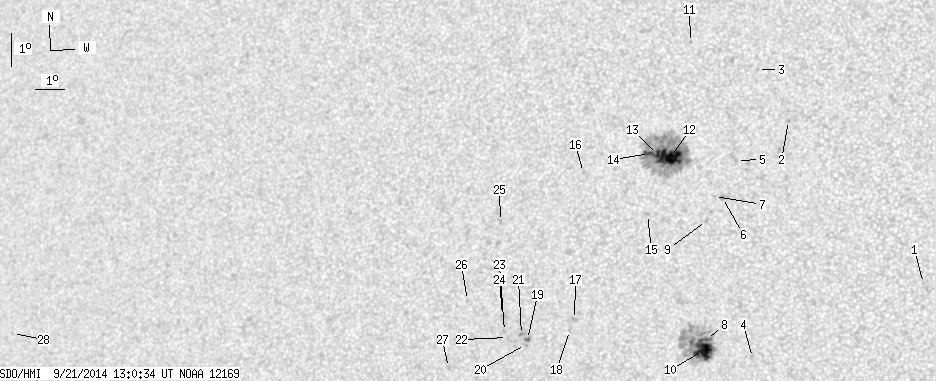

SDO HMI 2014-09-21 13:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 57.93 | 291.32 | 30.39 | 153.36 | 8.55 | 290.09 | -19.48 | 84.45 | 0.3359 | -536.3 | -307.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-21 13:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.71 | 0.00 | 0.36 | 7.33 | 298.18 | -11.39 | 87.93 | 0.1968 | -751.0 | -573.1 | |
| 0.00 | 1.24 | 0.00 | 0.64 | 12.12 | 293.74 | -15.83 | 70.82 | 0.2836 | -846.0 | -694.2 | |
| 0.00 | 1.24 | 0.00 | 0.65 | 13.63 | 292.65 | -16.92 | 67.09 | 0.3085 | -624.0 | -383.2 | |
| 0.00 | 1.95 | 0.00 | 1.01 | 4.95 | 292.91 | -16.66 | 96.33 | 0.2887 | 499.0 | 459.0 | |
| 0.00 | 1.33 | 0.00 | 0.69 | 10.86 | 292.15 | -17.42 | 76.28 | 0.3040 | -744.0 | -583.5 | |
| 0.00 | 2.13 | 0.00 | 1.11 | 9.73 | 291.77 | -17.80 | 80.14 | 0.3072 | -871.0 | -741.8 | |
| 0.00 | 0.89 | 0.00 | 0.46 | 9.75 | 291.51 | -18.06 | 80.18 | 0.3115 | -643.0 | -496.4 | |
| 0.80 | 98.32 | 0.42 | 51.34 | 5.44 | 291.44 | -18.13 | 94.10 | 0.3120 | -1054.9 | -409.3 | |
| 0.00 | 1.77 | 0.00 | 0.92 | 9.02 | 291.29 | -18.28 | 82.59 | 0.3138 | -757.0 | -613.8 | |
| 22.41 | -8.00 | 11.69 | -8.00 | 5.11 | 291.35 | -18.22 | 95.13 | 0.3141 | -1049.6 | 999999 | |
| 0.00 | 0.97 | 0.00 | 0.51 | 14.37 | 290.40 | -19.17 | 67.19 | 0.3466 | -641.0 | -517.2 | |
| 27.02 | 158.55 | 14.21 | 83.51 | 10.87 | 290.02 | -19.55 | 77.41 | 0.3382 | -1135.8 | -393.3 | |
| 2.92 | -12.00 | 1.54 | -12.00 | 10.95 | 289.59 | -19.98 | 77.40 | 0.3453 | -926.7 | 999999 | |
| 4.07 | -12.00 | 2.15 | -12.00 | 10.97 | 289.33 | -20.24 | 77.47 | 0.3495 | -796.3 | 999999 | |
| 0.00 | 1.86 | 0.00 | 0.98 | 9.13 | 289.38 | -20.19 | 82.73 | 0.3450 | 643.0 | 571.0 | |
| 0.00 | 1.15 | 0.00 | 0.62 | 10.30 | 287.20 | -22.37 | 80.06 | 0.3817 | -649.0 | -515.8 | |
| 0.00 | 2.39 | 0.00 | 1.28 | 5.87 | 287.16 | -22.41 | 91.76 | 0.3810 | 810.0 | 650.3 | |
| 0.00 | 0.71 | 0.00 | 0.38 | 5.53 | 287.01 | -22.56 | 92.61 | 0.3839 | 761.0 | 674.5 | |
| 0.71 | 2.30 | 0.38 | 1.25 | 5.20 | 285.64 | -23.93 | 93.13 | 0.4063 | 996.5 | 863.8 | |
| 0.00 | 1.59 | 0.00 | 0.86 | 5.04 | 285.58 | -23.99 | 93.49 | 0.4075 | 683.0 | 639.1 | |
| 0.00 | 2.48 | 0.00 | 1.35 | 5.34 | 285.44 | -24.13 | 92.74 | 0.4093 | 813.0 | 728.2 | |
| 0.00 | 0.44 | 0.00 | 0.24 | 5.22 | 284.98 | -24.59 | 92.91 | 0.4167 | 728.0 | 643.8 | |
| 0.00 | 1.68 | 0.00 | 0.92 | 5.40 | 284.87 | -24.70 | 92.46 | 0.4182 | 717.0 | 617.9 | |
| 0.00 | 1.77 | 0.00 | 0.97 | 5.88 | 284.78 | -24.79 | 91.30 | 0.4189 | 645.0 | 579.5 | |
| 0.00 | 2.04 | 0.00 | 1.11 | 8.70 | 284.55 | -25.02 | 84.55 | 0.4217 | 782.0 | 610.5 | |
| 0.00 | 1.06 | 0.00 | 0.58 | 6.27 | 283.59 | -25.98 | 90.21 | 0.4373 | 690.0 | 542.6 | |
| 0.00 | 1.95 | 0.00 | 1.08 | 4.22 | 283.04 | -26.53 | 94.72 | 0.4489 | 705.0 | 610.1 | |
| 0.00 | 0.80 | 0.00 | 0.54 | 4.14 | 266.98 | -42.59 | 91.58 | 0.6776 | 550.0 | 480.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
