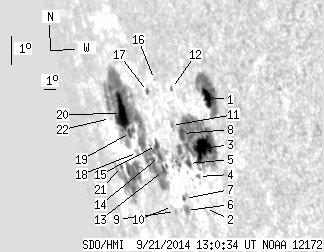

SDO HMI 2014-09-21 13:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 89.80 | 517.19 | 146.87 | 893.98 | -11.26 | 238.03 | -71.54 | 104.03 | 0.9582 | -5.7 | -143.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-21 13:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 12.13 | 51.82 | 15.68 | 66.83 | -9.38 | 243.89 | -65.68 | 103.25 | 0.9253 | 530.1 | 276.0 | |
| 0.00 | 1.68 | 0.00 | 2.45 | -13.07 | 242.00 | -67.57 | 106.70 | 0.9415 | 286.0 | 274.9 | |
| 27.28 | 154.83 | 37.50 | 218.10 | -11.09 | 242.79 | -66.78 | 104.81 | 0.9344 | 466.2 | 64.9 | |
| 0.53 | 1.68 | 0.76 | 2.42 | -12.06 | 241.98 | -67.59 | 105.65 | 0.9403 | 405.5 | 372.1 | |
| 2.48 | -3.00 | 3.66 | -3.00 | -11.73 | 241.33 | -68.24 | 105.16 | 0.9436 | 99.2 | 999999 | |
| 0.00 | 6.11 | 0.00 | 9.68 | -13.34 | 240.22 | -69.36 | 106.59 | 0.9514 | 10.0 | 35.6 | |
| 0.53 | 2.92 | 0.84 | 4.59 | -12.96 | 240.28 | -69.29 | 106.20 | 0.9506 | 297.8 | 280.8 | |
| 6.29 | -3.00 | 9.22 | -3.00 | -10.80 | 241.30 | -68.27 | 104.18 | 0.9426 | -492.6 | 999999 | |
| 0.00 | 1.42 | 0.00 | 2.39 | -13.51 | 239.10 | -70.47 | 106.52 | 0.9571 | -194.0 | -167.9 | |
| 0.00 | 0.27 | 0.00 | 0.45 | -13.37 | 238.91 | -70.66 | 106.34 | 0.9579 | -272.0 | -261.3 | |
| 0.35 | 2.48 | 0.54 | 3.77 | -10.65 | 240.44 | -69.13 | 103.85 | 0.9472 | -525.5 | -451.3 | |
| 0.00 | 1.42 | 0.00 | 2.08 | -9.43 | 241.01 | -68.56 | 102.70 | 0.9427 | 7.0 | 39.3 | |
| 2.83 | 224.27 | 4.78 | 432.88 | -12.25 | 238.80 | -70.77 | 105.17 | 0.9573 | 43.3 | -235.0 | |
| 2.66 | -13.00 | 4.48 | -13.00 | -11.82 | 238.69 | -70.88 | 104.71 | 0.9574 | -457.6 | 999999 | |
| 3.19 | -13.00 | 5.40 | -13.00 | -11.49 | 238.61 | -70.96 | 104.35 | 0.9575 | -576.7 | 999999 | |
| 0.00 | 0.80 | 0.00 | 1.25 | -9.32 | 239.57 | -70.00 | 102.30 | 0.9505 | -336.0 | -367.0 | |
| 1.06 | 2.39 | 1.76 | 3.96 | -9.79 | 238.69 | -70.88 | 102.62 | 0.9554 | -384.7 | -295.1 | |
| 0.00 | 3.45 | 0.00 | 6.74 | -11.98 | 236.36 | -73.21 | 104.41 | 0.9681 | -364.0 | -299.1 | |
| 4.16 | -13.00 | 8.21 | -13.00 | -11.39 | 236.01 | -73.57 | 103.75 | 0.9691 | -514.4 | 999999 | |
| 25.42 | -13.00 | 51.97 | -13.00 | -10.88 | 235.35 | -74.22 | 103.11 | 0.9714 | -237.0 | 999999 | |
| 0.89 | 60.76 | 2.07 | 134.36 | -12.72 | 233.89 | -75.68 | 104.71 | 0.9782 | -61.6 | -349.8 | |
| 0.00 | 0.89 | 0.00 | 2.03 | -11.23 | 233.76 | -75.81 | 103.19 | 0.9776 | 397.0 | 397.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
