SDO HMI 2014-09-21 13:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 7.26 | 0.00 | 5.37 | 14.97 | 261.25 | -48.32 | 76.21 | 0.7446 | 28.6 | -274.4 | |
|
previous
or next observation for the same group /

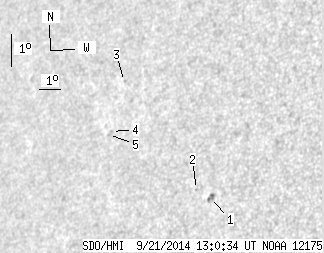

back to the solar disc SDO HMI 2014-09-21 13:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 4.34 | 0.00 | 3.11 | 14.37 | 262.97 | -46.60 | 76.85 | 0.7251 | -721.0 | -589.5 | |
| 0.00 | 0.80 | 0.00 | 0.58 | 14.55 | 262.28 | -47.29 | 76.66 | 0.7333 | -546.0 | -462.0 | |
| 0.00 | 0.44 | 0.00 | 0.35 | 17.48 | 257.80 | -51.77 | 73.25 | 0.7847 | 565.0 | 506.0 | |
| 0.00 | 1.06 | 0.00 | 0.84 | 15.93 | 257.73 | -51.84 | 75.24 | 0.7842 | 372.0 | 284.9 | |
| 0.00 | 0.62 | 0.00 | 0.49 | 15.82 | 257.62 | -51.95 | 75.38 | 0.7853 | 473.0 | 416.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
